Galcon DCS Series User Manual

Programming Options
20
(To connect the sensor to the connection block - see Section 2.5,
"Wiring the Solenoid and the Sensor")

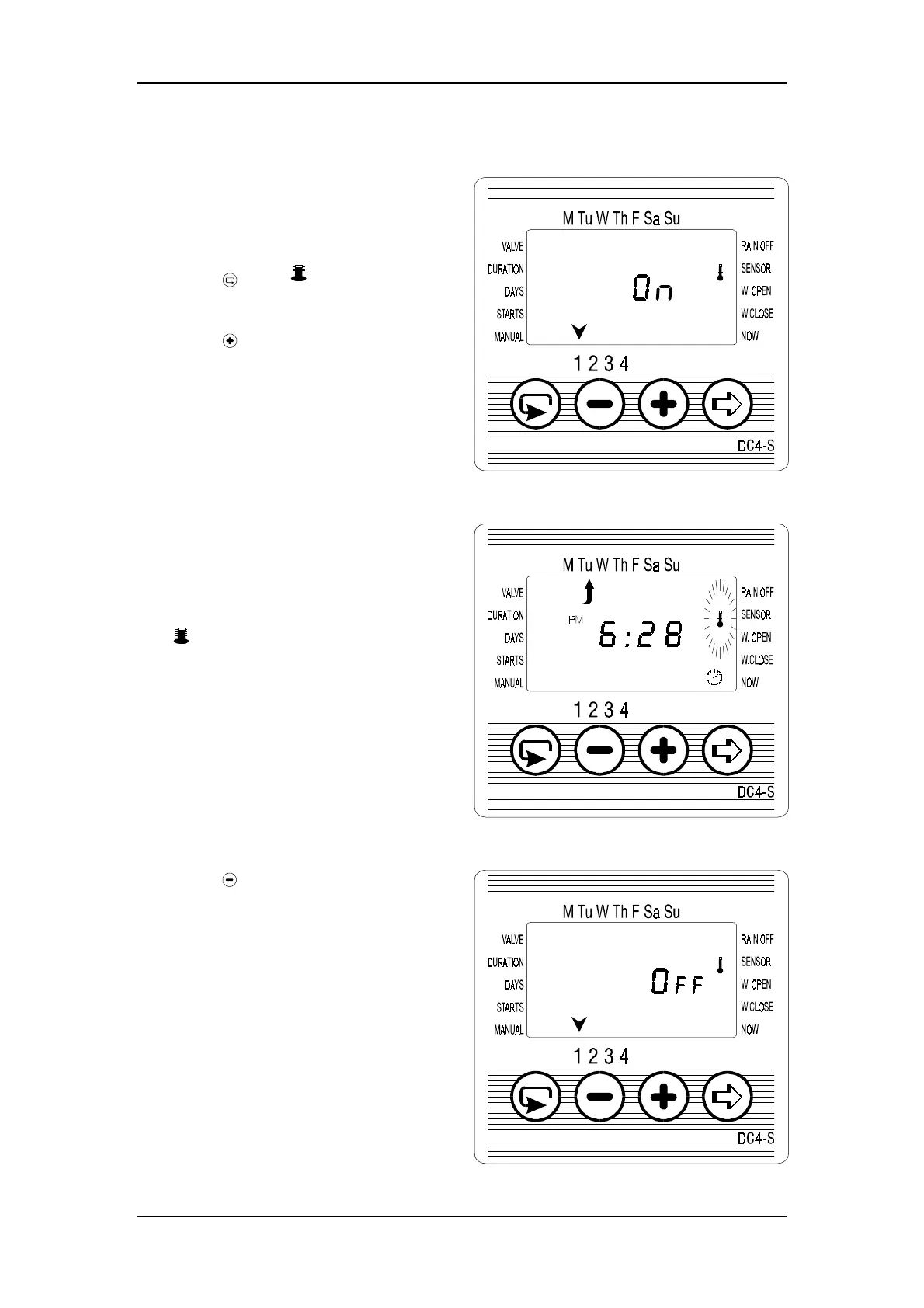

1 . Select the valve to which the
sensor is to be associated
(Models DC4S only).
2 . Press
until appears next to
SENSOR.
3 . Press
to activate the sensor in
the irrigation program for the
selected valve.
* With the sensor circuit closed
(i.e., the sensor detects the
existence of a defined program
lockout condition) the symbol
blinks on the display. In this
situation, irrigation will not take
place through valves associated
with the sensor.
4 . Press to disable the sensor.
The word “OFF” appears on the
display.
