Galcon DCS Series User Manual

Setting Up the Irrigation Controller
5
2 . 4 . Installing the Controller In the Irrigation System
If the mounting plate [2] is attached
to the controller, remove it.
1 . Insert the mounting coupling [1]
into the mounting plate, aligning
the words “TOP”, which are
stamped on both the coupling,
and the plate (see Fig. 4).
2 . Press the mounting plate, with
the mounting coupling inserted,
against the irrigation controller
back.
* The controller mounting plate [2]
can be mounted on a wall using
two screws, in which case
mounting coupling [1] is not
used. The distance between the
controller and the solenoid is
limited by the length of their
connecting cable.

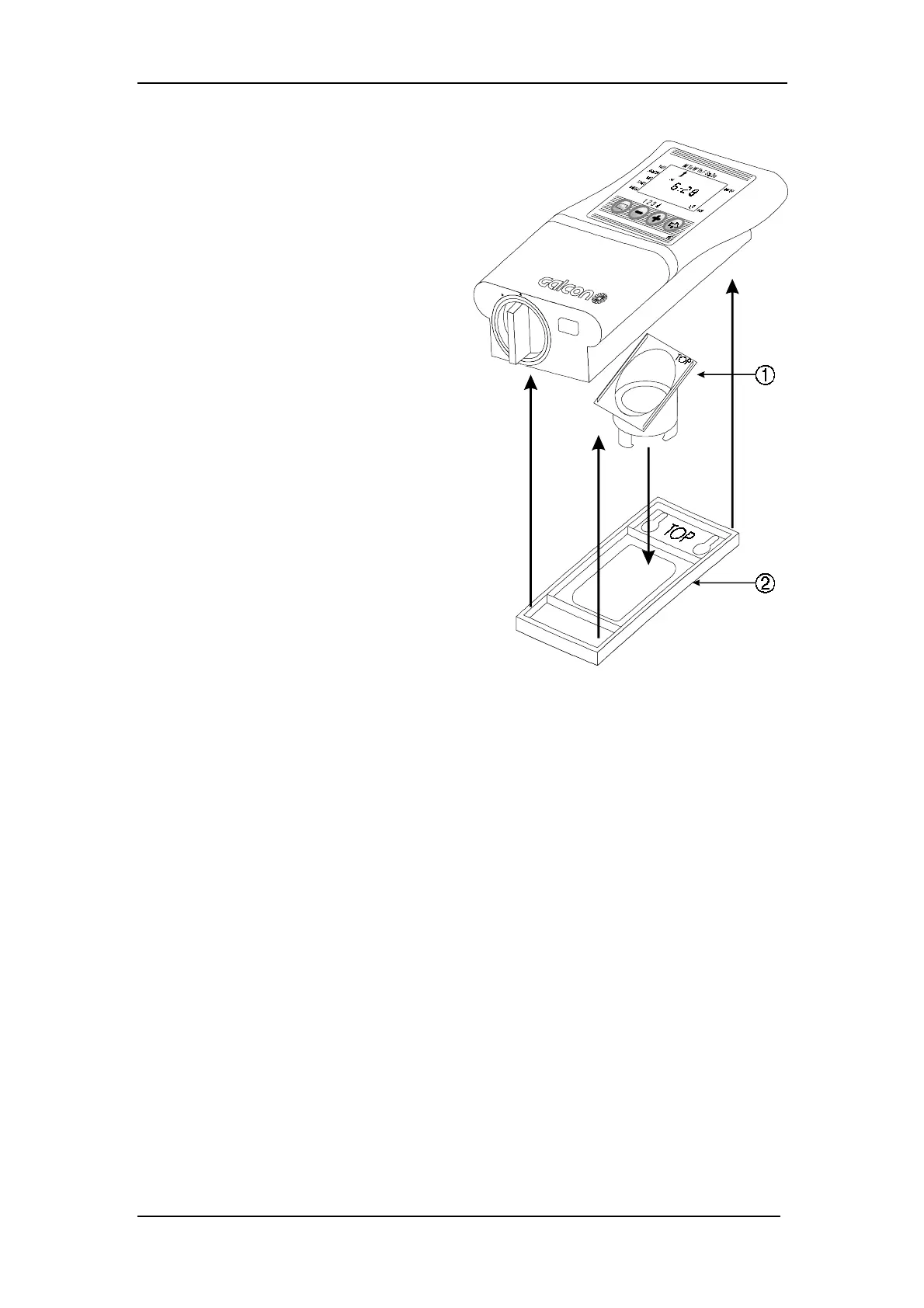

Figure 4
