Panel Indicators and Connectors
50
By default, the label in this area shows the instrument’s serial number written in white text on a blue
background. You can choose a different label. A sheet of alternate labels is provided with each instrument and a
user-editable Excel file can be found on the Gamry website.
Full instructions describing the process of changing a label are near the end of the Installation chapter (Chapter
3).
Rear Panel
Power In Jack

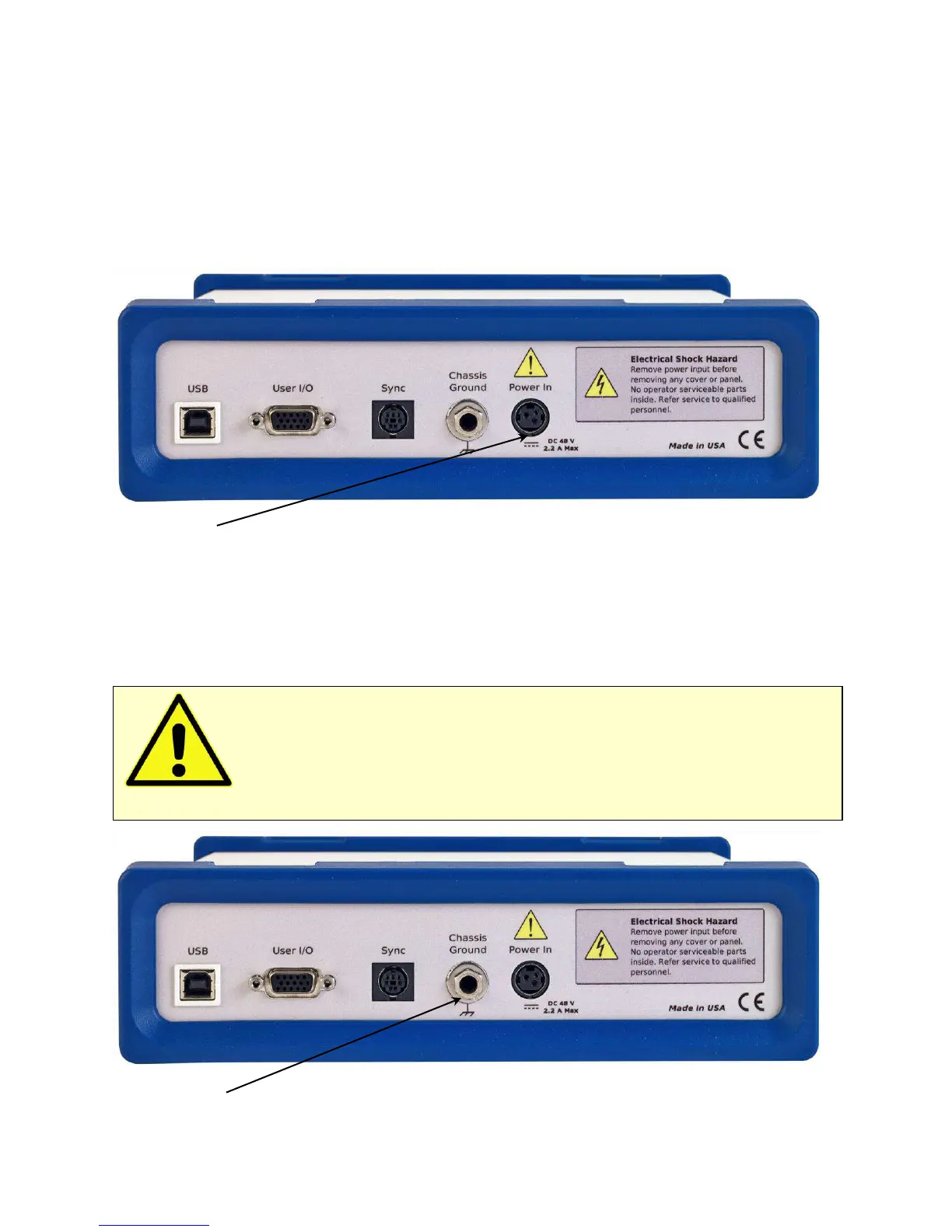

The Power In jack is a 4-pin power DIN connector. The Interface 5000 derives all its power from +48 V DC
input through the Power In jack. The input current is less than 1.8 A.
Always use the external power supply supplied with your Interface 5000 or power from an Interface Power Hub
to supply DC power to the instrument.
The external power supply is rated for operation from 100 to 240 V AC, at frequencies from 47 to 63 Hz. It
should therefore be useable worldwide.
Chassis Ground
Caution: Power input voltages less than 40 V or greater than 52 V can damage the
Interface 5000’s power supply.
