Gardner Denver AUTO SENTRY EAU99G - Series and Parallel Piping; Electrical Wiring Standard Units; Grounding Requirements

13-10-614 Page 17

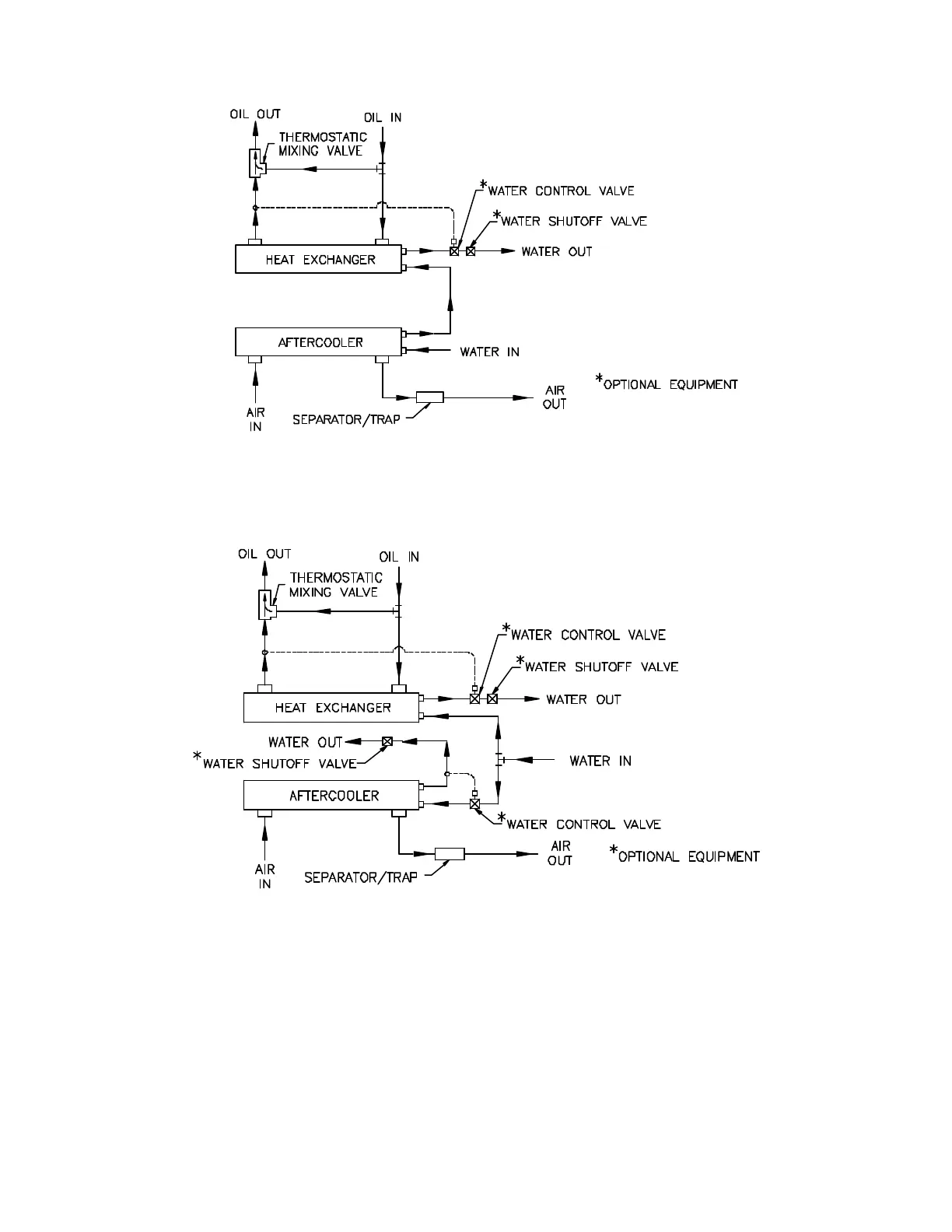

Figure 2-7 – SERIES PIPING
Figure 2-8 – PARALLEL PIPING
* (OPTIONAL) WATER CONTROL VALVE AND WATER SHUTOFF VALVE MUST BE ORDERED SEPARATELY
305EAQ797-A
(Ref. Drawing)
306EAQ797-A
(Ref. Drawing)
