Gardner Denver AUTO SENTRY EAU99G - Figure 4-9 - Control Schematic - Compressor Fully Unloaded - Low Demand Mode Switch on

13-10-614 Page 32

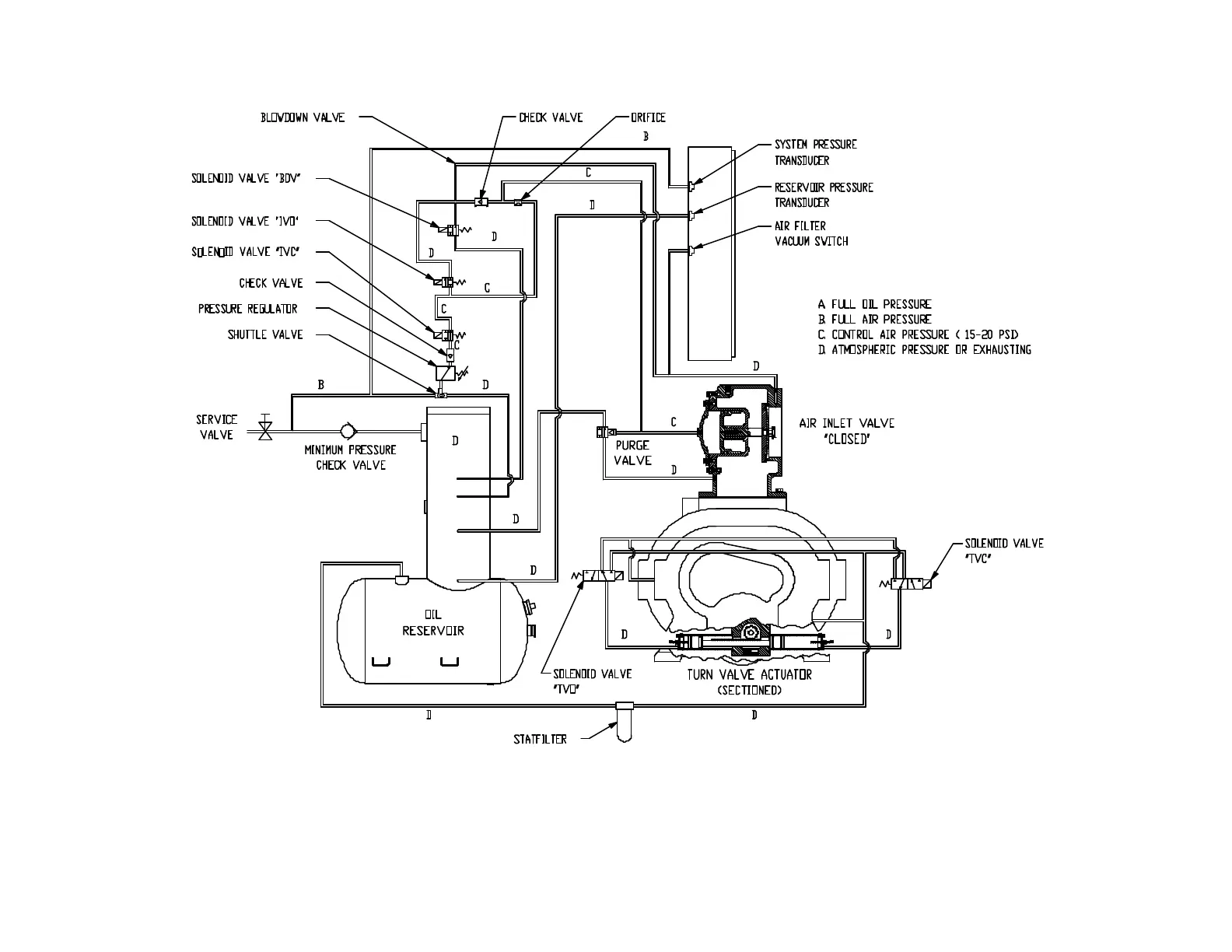

Figure 4-9 – CONTROL SCHEMATIC – COMPRESSOR FULLY UNLOADED – LOW DEMAND MODE SWITCH ON
208EAU797-A
(Ref. Drawing)
