GARDTEC GT490X - Digi Modem

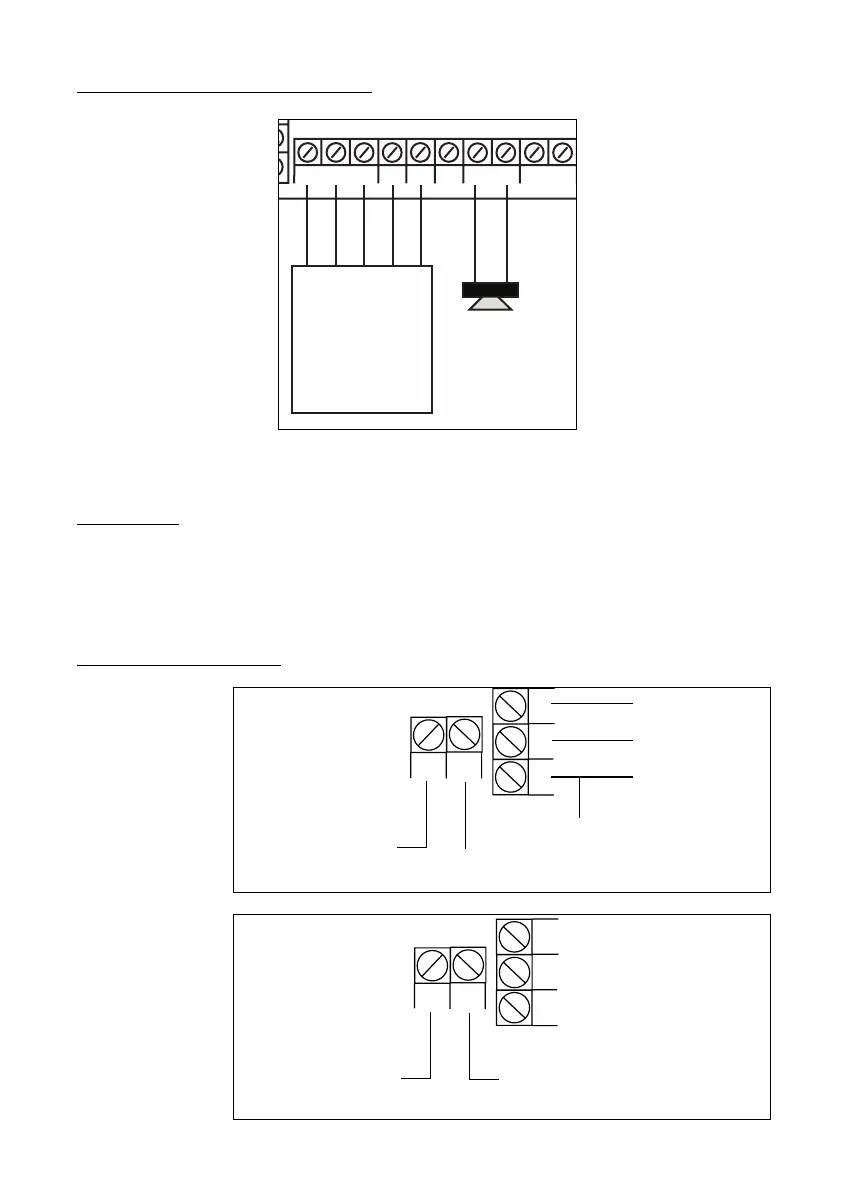

Control Panel Output Connections
Digi Modem
The 490X control panels feature an onboard Digi modem. The Digi provides all the fea-
tures of an eight channel communicator whilst the Modem provides facilities for
Gardtec Remote Upload/Download software package
.
Telephone Connections
Page 8
490X Engineer’s Reference Guide
- + -
STROBE BELL
BELL SAB PGM1 SPR+ SPR + -
HOLD TMPR AUX 12V
S
EXTERNAL SOUNDER
/ STROBE MODULE
INTERNAL SPEAKERS
MIN 16 OHM
Strobe - Trigger
Bell / Strobe + Hold-Off
Bell - Trigger
Bell Hold-Off - Supply
- Tamper Return
A5
IN
B2
IN
C3
B2 A5
Terminal 5
(on existing BT Master socket)
Terminal 2
(on existing BT Master socket)
Terminal 3
(on existing BT Master socket)
Terminal 5
(on other extension sockets)
Terminal 2
(on other extension sockets)
Terminal 3
(on other extension sockets)
Serial
Telephone
Connection
(Depending on model)
A5
IN
B2
IN
C3
B2 A5
Terminal 5
(on existing BT socket)
OR
Terminal A
(on BT Terminal Block)
Terminal 2
(on existing BT socket)
OR
Terminal B
(on BT Terminal Block)
Standard
Telephone
Connection
