Garland MWE3W Service Manual

PART #4526396 (03/30/10)
GARLAND CLAMSHELL GRILLS WITH PRODUCT RECOGNITION SERVICE MANUAL
Page 9
32.60
[828mm]
21.65
[550mm]
PLATE DEPTH
36.00
[914mm]
PLATE WIDTH
38.00
[965mm]
5.475
[139mm]
1.70 [43mm]
“COLD ZONE”
30.714
[780mm]
26.42
[671mm]
7.875 [200mm]
9.684 [246mm]
15.384
[391mm]
30.75 [781mm]
TO
33.00 [838mm]
COOKING HEIGHT
23.812
[605mm]
13.123
[333mm]
36.027
[915mm]
24.084
[612mm]
24.33
[618mm]
BOTTOM CABLE
ENTRANCE
BOTTOM CABLE
ENTRANCE
1.598
[41mm]
.787
[20mm]
1.50
[38mm]
1.516
[39mm]
6.106
[155mm]
2.993
[76mm]
9.335
[237mm]
48°

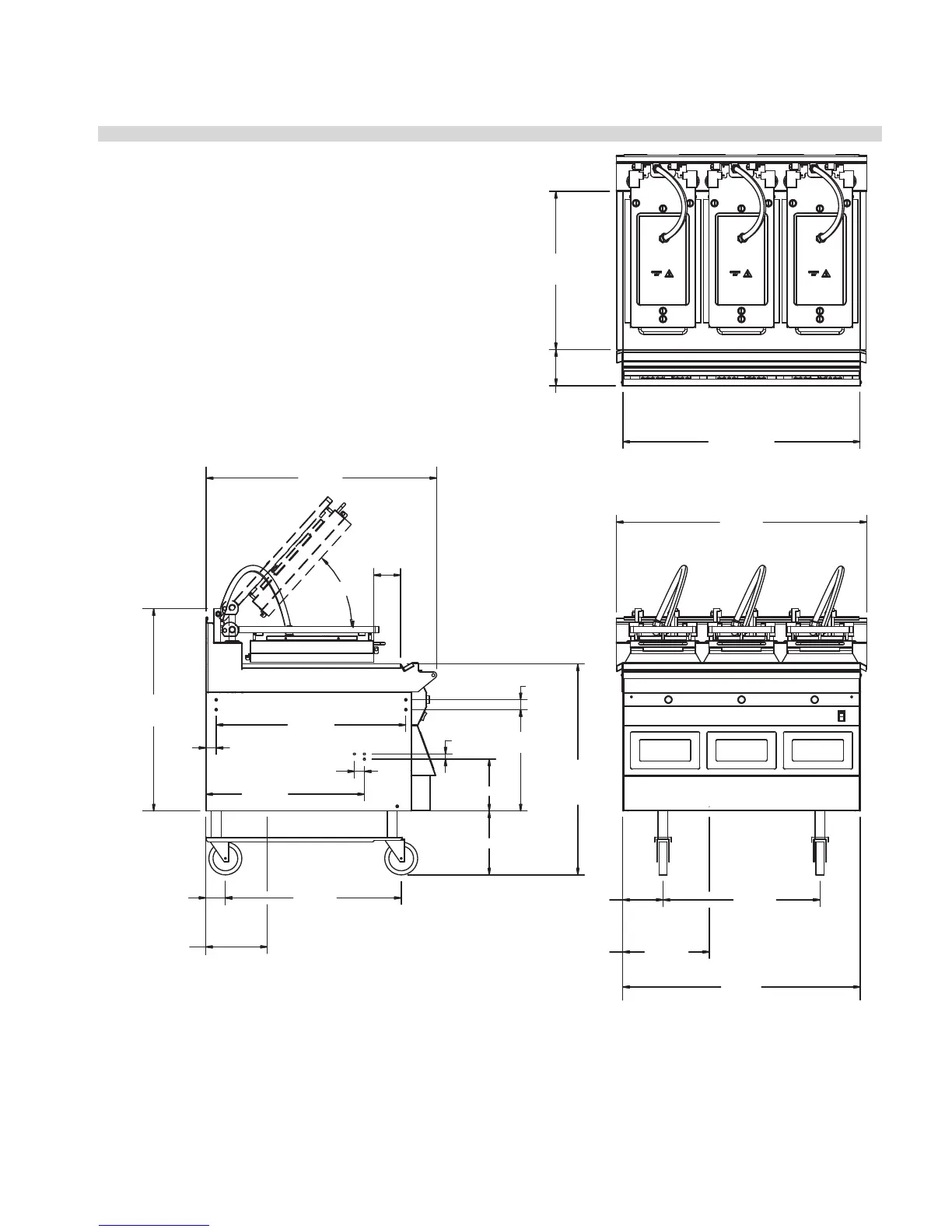

SPECIFICATIONS
Dimensions: Model MWE3S
[MWG3W ONLY]

Garland MWE3W Specifications

General

Brand	Garland
Model	MWE3W
Category	Grill
Language	English
