Garmin G1000 Pilot’s Guide for the Diamond DA42NG
190-00962-04 Rev. A260
FLIGHT MANAGEMENT
SYSTEM
OVERVIEW
FLIGHT
INSTRUMENTS
EIS
AUDIO PANEL
& CNS
FLIGHT
MANAGEMENT
HAZARD
AVOIDANCE
AFCS
ADDITIONAL
FEATURES
APPENDICESINDEX

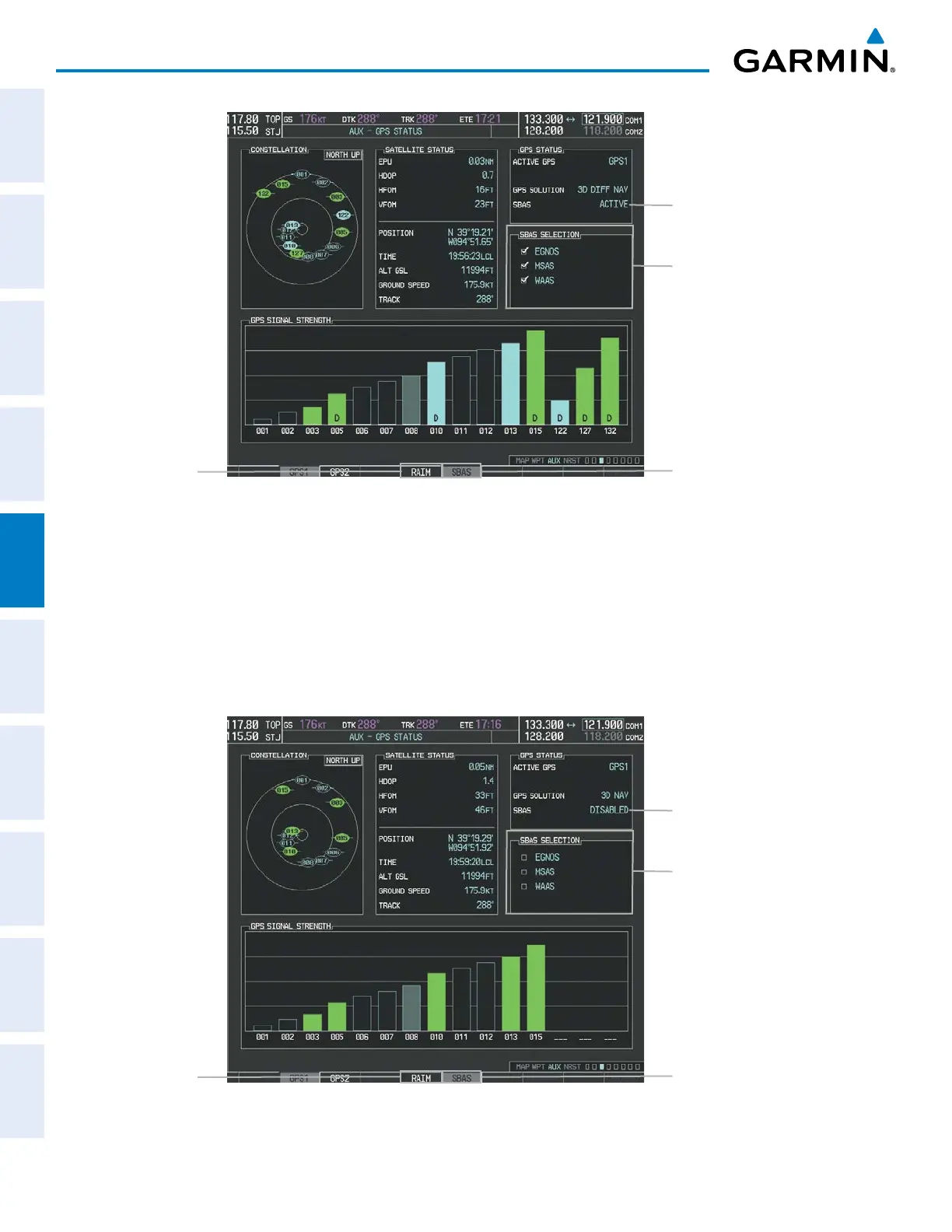

Figure 5-115 SBAS Display - Active
SBAS Softkey
(displays SBAS Selection)
SBAS SELECTION Box
-
EGNOS Enable/Disable
-
MSAS Enable/Disable
-
WAAS Enable/Disable
RAIM Softkey
(displays RAIM
PREDICTION)
SBAS Status
Enabling/Disabling SBAS:
1) Select the AUX-GPS Status Page.
2) Press the SBAS Softkey.
3) Press the
FMS
Knob
, and turn the large FMS Knob to highlight ‘EGNOS’, ‘MSAS’ or ‘WAAS’.
4) Press the ENT Key to disable SBAS. Press the ENT Key again to enable SBAS.
Figure 5-116 SBAS Display - Disabled
SBAS Softkey
(displays SBAS Selection)
SBAS SELECTION Box
-
EGNOS Enable/Disable
-
MSAS Enable/Disable
-
WAAS Enable/Disable
RAIM Softkey
(displays RAIM
PREDICTION)
SBAS Status
