MARKER BEACON ANNUNCIATIONS
Marker Beacon Annunciations are displayed on the PFD to the left of the Selected Altitude. Outer marker
reception is indicated in blue, middle in amber, and inner in white. Refer to the Audio Panel and CNS Section
for more information on Marker Beacon Annunciations.

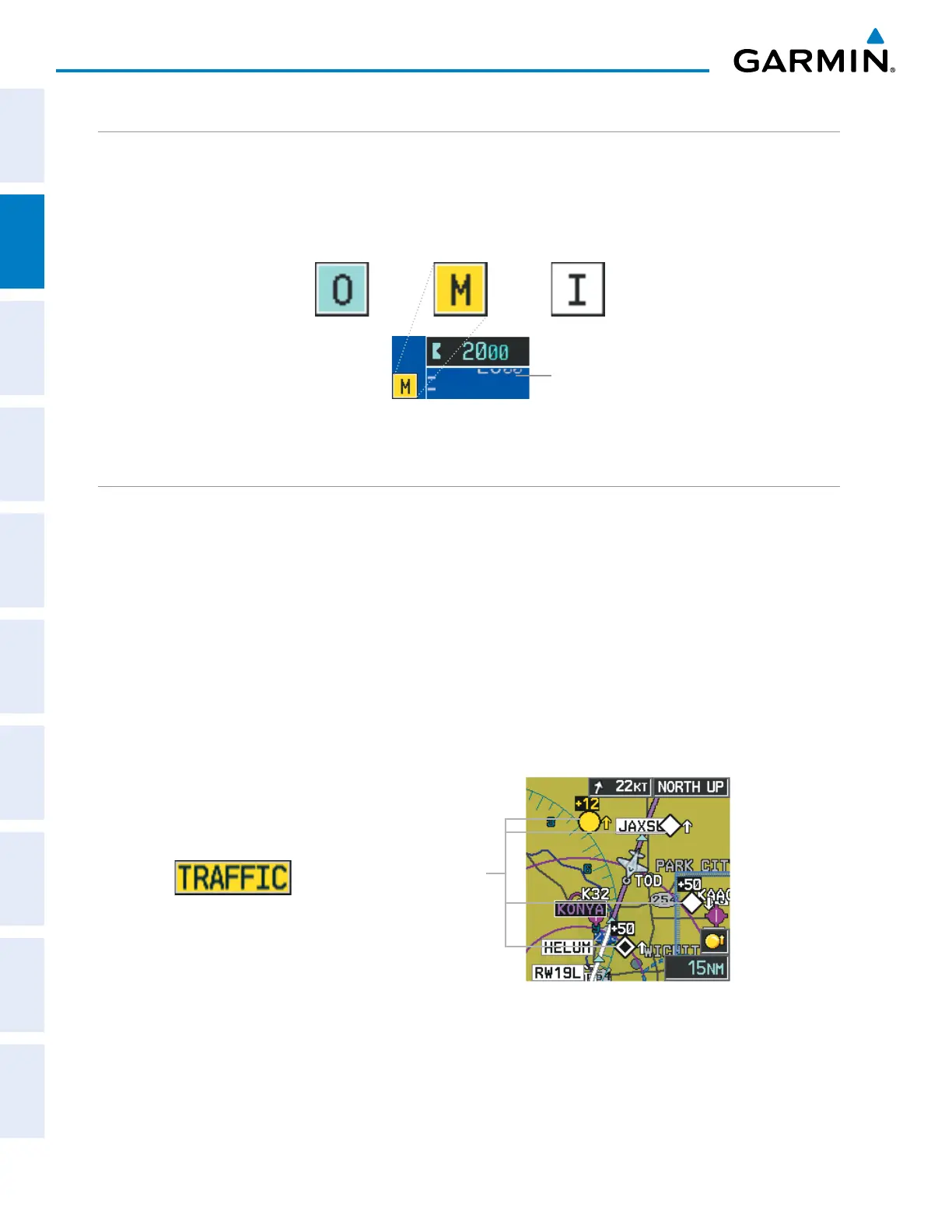

Figure 2-36 Marker Beacon Annunciations
Inner Marker
Outer Marker
Altimeter
Middle Marker
TRAFFIC ANNUNCIATION
Traffic is displayed symbolically on the PFD Inset Map, the MFD Navigation Map Page, and various other
MFD page maps. Refer to the Hazard Avoidance Section and Appendix for more details about the Traffic
Information Service (TIS) and optional Traffic Advisory Systems (TAS). When a traffic advisory (TA) is detected,
the following automatically occur:
The PFD Inset Map is enabled and displays traffic.
• A flashing black-on-amber TRAFFIC annunciation appears to the top left of the Attitude Indicator for five
seconds and remains displayed until no TAs are detected in the area.
A single “TRAFFIC” voice alert is heard, unless an optional Traffic Advisory System (TAS) is installed. Refer
to the applicable TAS documentation for alerts generated by TAS equipment.
If additional TAs appear, new aural and visual alerts are generated.
Traffic
Symbols
Figure 2-37 Traffic Annunciation and Inset Map with TAS Traffic Displayed
