Obstacles are represented on the synthetic terrain display by standard two-dimensional tower symbols found
on the Inset map and MFD maps and charts. Obstacle symbols appear in the perspective view with relative
height above terrain and distance from the aircraft. Unlike the Inset map and MFD moving map display,
obstacles on the synthetic terrain display do not change colors to warn of potential conflict with the aircraft’s
flight path until the obstacle is associated with an actual FLTA alert. Obstacles greater than 1000 feet below the
aircraft altitude are not shown. Obstacles are shown behind the airspeed and altitude displays.

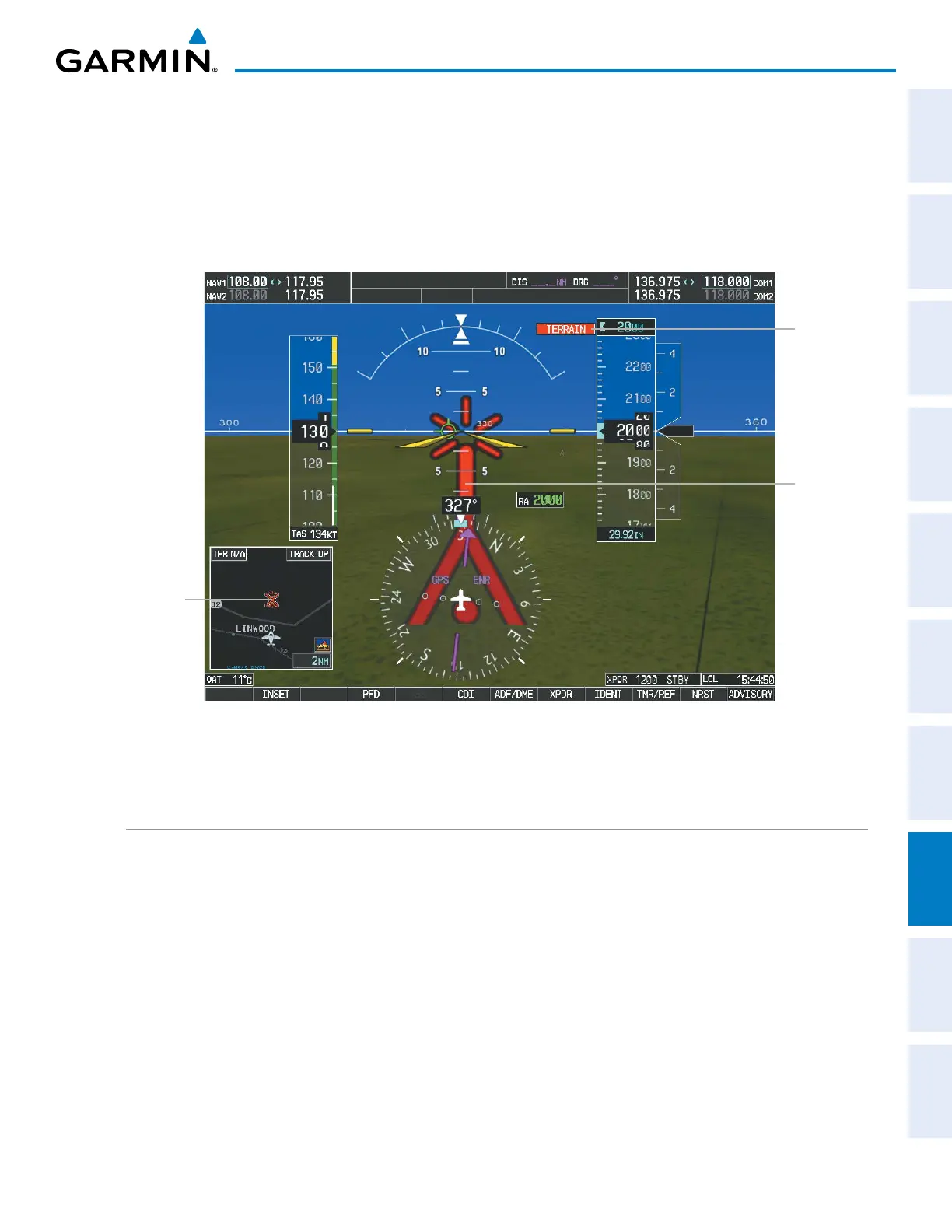

Figure 8-11 Obstacle
Potential
Impact
Point
Obstacle
Warning
TERRAIN
Annunciation
FIELD OF VIEW
The PFD field of view can be represented on the MFD Navigation Map Page. Two dashed lines forming a
V-shape in front of the aircraft symbol on the map, represent the forward viewing area shown on the PFD.
Configuring field of view:
1) While viewing the Navigation Map Page, press the MENU Key to display the PAGE MENU.
2) Turn the large
FMS
Knob to highlight Map Setup and press the
ENT
Key.
