Garmin G1000 Pilot's Guide

190-00962-04 Rev. A
Garmin G1000 Pilot’s Guide for the Diamond DA42NG
461
AUTOMATIC FLIGHT CONTROL SYSTEM
SYSTEM
OVERVIEW
FLIGHT
INSTRUMENTS
EIS
AUDIO PANEL
& CNS
FLIGHT
MANAGEMENT
HAZARD
AVOIDANCE
AFCS
ADDITIONAL
FEATURES
APPENDICES INDEX
AFCS STATUS BOX
Flight director mode annunciations are displayed on the PFD when the flight director is active. Autopilot
status is displayed in the center of the AFCS Status Box. Lateral flight director modes are displayed on the left
and vertical on the right. Armed modes are annunciated in white and active in green.
GPS is
Selected
Navigation
Source
Command
Bars
Selected
Altitude

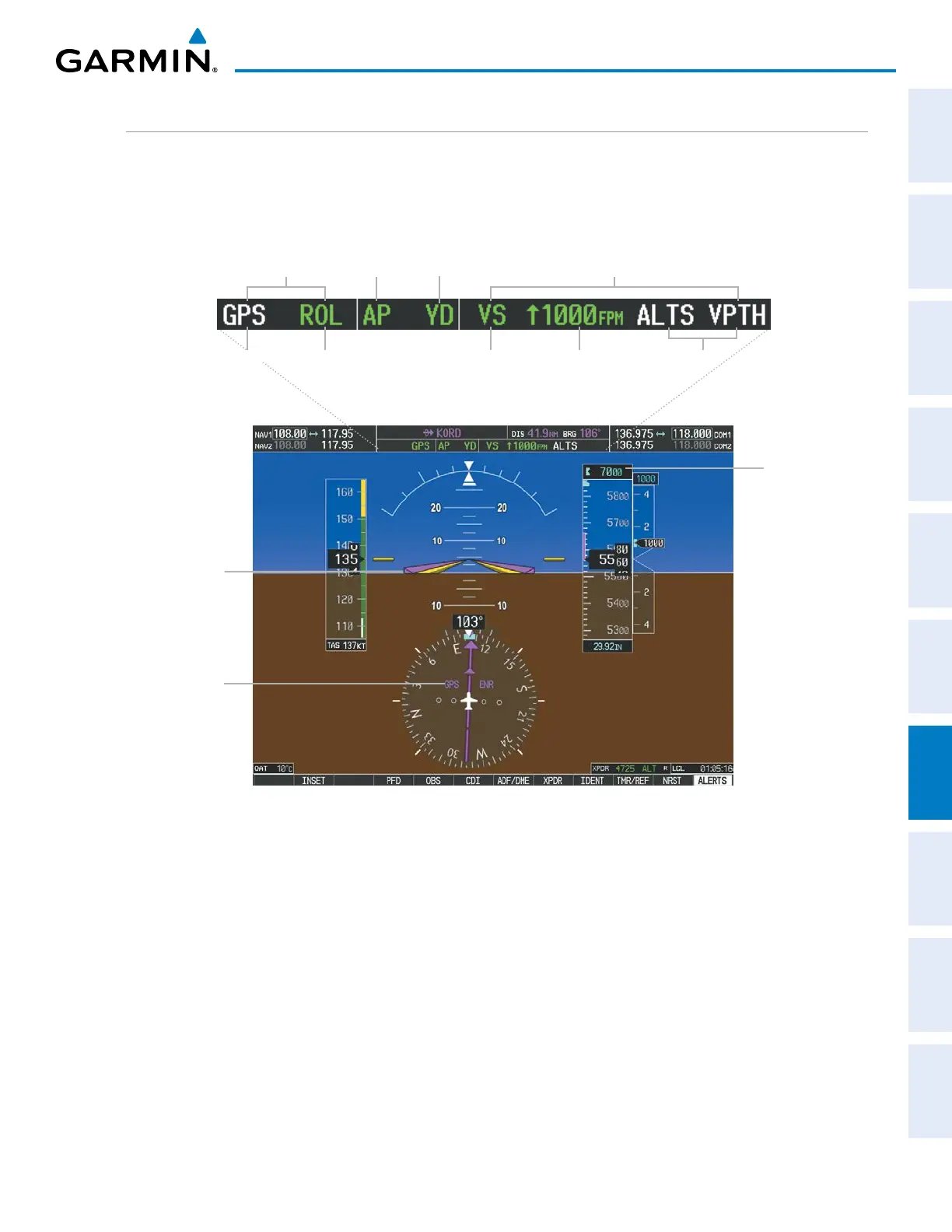

Figure 7-2 PFD AFCS Display
AFCS Status Box
Lateral Modes
Active
Autopilot
Status
Active
Mode
Reference
Armed
Vertical Modes
Armed
Yaw
Damper
Status

Garmin G1000 Specifications

General

Display Type	LCD
Primary Flight Display (PFD)	Yes
Multi-Function Display (MFD)	Yes
Terrain Awareness	Yes
Autopilot Integration	Yes
Integrated Flight Deck System	Yes
Weather Radar	Optional
Traffic Advisory System (TAS)	Optional
Terrain Awareness and Warning System (TAWS)	Yes
Resolution	1024 x 768 pixels
Weather Data	Yes
Navigation	Yes
AHRS	Yes
Air Data Computer (ADC)	Yes
Interfaces	ARINC 429, RS-232
Certification	TSO certified
Traffic Information	Optional (requires ADS-B or TCAS)
