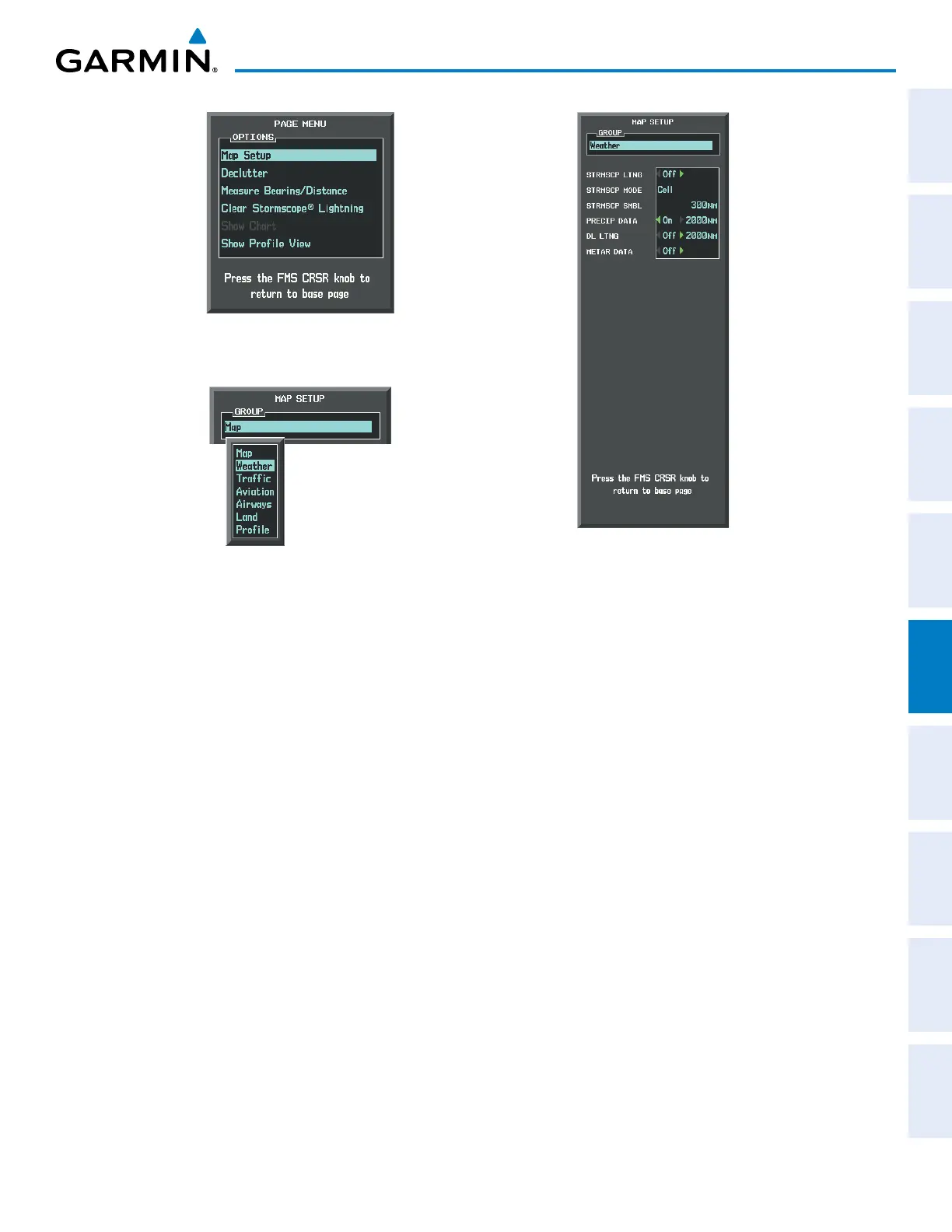

Figure 6-62 Navigation Map Page Setup Menu
Figure 6-61 Navigation Map Page Menu
Figure 6-63 Navigation Map Page Setup Menu, Weather Group
Each active weather product has an associated legend which can be displayed on the Weather Data Link
(CNXT) Page. If no weather product softkeys are selected, the LEGEND Softkey will be unavailable.
Viewing legends for displayed weather products
1) Select the Weather Data Link (CNXT) Page.
2) Press the LEGEND Softkey to display the legends for the displayed weather products.
Or:
a) Press the MENU Key.
b) Select ‘Weather Legend’ and press the ENT Key.
3) Turn the FMS Knob to scroll through the legends if more are available than fit in the window.
4) To remove the Legend Window, select the LEGEND Softkey, the ENT or the CLR Key, or press the FMS Knob.
When a Garmin Connext weather product is enabled for display on the PFD Inset Map, the weather product
information box (with the product icon and age) can be displayed inside the PFD Inset Map.
Viewing the weather product information box on the PFD Inset Map:
1) On the PFD, press the INSET Softkey.
2) Press the WX LGND Softkey.
3) To remove the weather product information box, press the WX LGND Softkey again or deselect all active
Garmin Connext Weather products on the PFD Inset Map.
