Garmin G5 User's Manual
190-02072-00 Rev. B
98
Pilot's Guide
Installation ManualPilot's GuideIndex

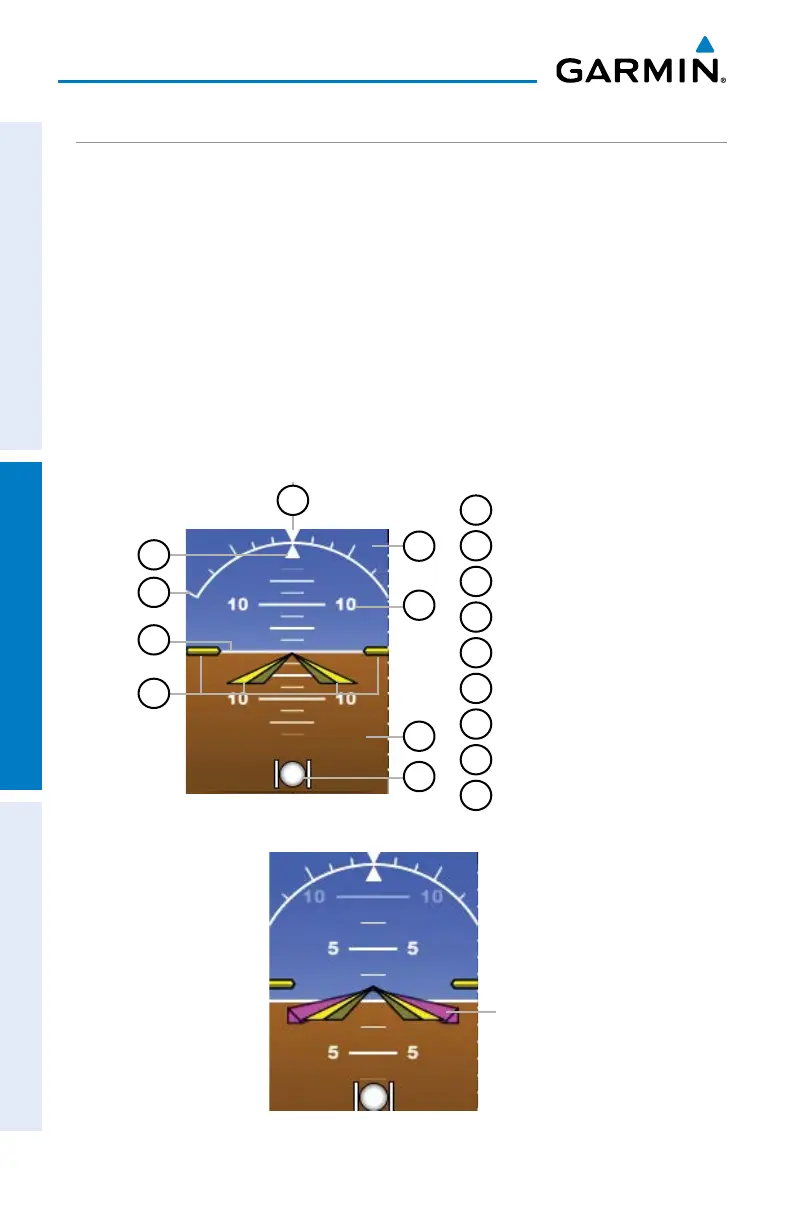

2.6.2 ATTITUDE INDICATOR
Attitude information is displayed over a virtual blue sky and brown ground with a
white horizon line. The Attitude Indicator displays the pitch (indicated by the yellow
symbolic aircraft on the pitch scale), roll, and slip/skid information.
The horizon line is part of the pitch scale. Pitch markings occur at 2.5˚ intervals
through all pitch ranges. Refer to the Installation Manual section to configure the
pitch scale.
The inverted white triangle indicates zero on the roll scale. Major tick marks at 30˚
and 60˚ and minor tick marks at 10˚, 20˚, and 45˚ are shown to the left and right of the
zero. Angle of bank is indicated by the position of the pointer on the roll scale.
Slip/skid is indicated by the location of the ball.
1
Roll Pointer
2
Roll Scale
3
Horizon Line
4
Aircraft Symbol
5
Slip/Skid Indicator
6
Land Representation
7
Pitch Scale
8
Sky Representation
9
Roll Scale Zero
Attitude Indicator
5
6
8
7
2
4
3
9
1
Attitude Indicator with Flight Director (Single Cue)
Flight Director
