4 GHP12InstallationInstructions

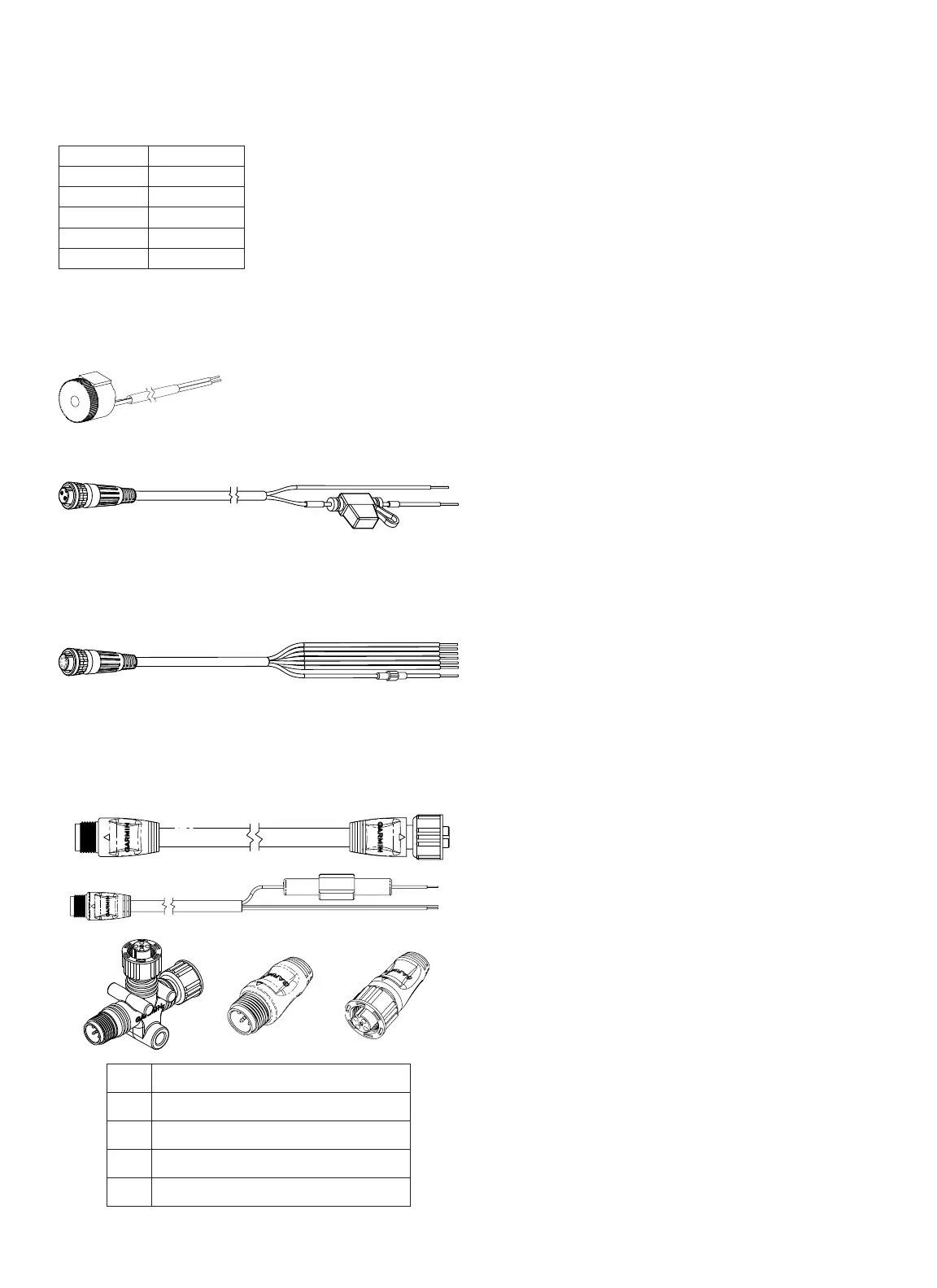

When installing the GHP 12 system, you may need to mount the
CCU farther than 16 ft. (5 m) from the ECU. Garmin offers optional
replacement or extension cables for purchase if this is necessary.
Replacement 32 ft. (10 m)
Replacement 66 ft. (20 m)
Extension 16 ft. (5 m)
Extension 50 ft (15 m)
Extension 82 ft. (25 m )
Contact your local Garmin dealer or Garmin Product Support for
ordering information.
The alarm provides audible alerts from the GHP 12 (page 11).
This cable powers the ECU (page 10).
Included in the GHC 10 box, this cable connects the GHC 10 to the
yellow wire of the CCU, and to the same ground as the ECU
(page 12). This cable can also be used to connect the GHC 10 to
optional NMEA 0183-compatible devices (page 14).
The NMEA 2000 cables connect the CCU and the GHC 10 to the
NMEA 2000 network. Either connect the CCU and the GHC 10 to an
existing NMEA 2000 network using the included T-connectors and drop
cables, use all of the included NMEA 2000 cables and connectors to
build a NMEA 2000 network on your boat if needed (page 12).
➊
➋
➌ ➍ ➎
➊
NMEA 2000 drop cable, 6 ft. (2 m) (×2)
➋
NMEA 2000 power cable
➌
NMEA 2000 T-connector (×3)
➍
NMEA 2000 terminator, male
➎
NMEA 2000 terminator, female
NMEA 2000 extension cables are available if needed. Contact
your local Garmin dealer or Garmin Product Support for ordering
information.
• Safety glasses
• Drill and drill bits
• 3
1
/
2
in. (90 mm) hole saw
• Wire cutters/strippers
• Phillips and at screwdrivers
• Cable ties
• Waterproof wire connectors (wire nuts) or heat-shrink tubing and a
heat gun
• Marine sealant
• Portable or handheld compass (to test for magnetic interference
when determining the best location to install the CCU)
• Anti-seize lubricant (optional)
NOTE: Mounting screws are provided for the GHC 10, for the
CCU, for the ECU, and for the pump. If the provided screws are not
appropriate for the mounting surface, you must provide the correct
types of screws.
