The GPSMAP 4000 series chartplotters have a basic worldwide imagery map and built-in detailed
BlueChart g2 offshore cartography for US waters.
From the Home screen, select Charts.
Navigation Chart—displays all relevant navigation data available on your preloaded maps,
including buoys, lights, cables, depth soundings, marinas, and tide stations in an overhead view.
Perspective 3D—displays a view from above and behind your boat for a visual navigation aid.
NOTE: Mariner’s Eye 3D, Fishing Charts, and Fish Eye 3D views are available when using optional
Blue Chart g2 Vision preprogrammed SD cards. See page 16.
Mariner’s Eye 3D—displays a detailed, three-dimensional view from above and behind the boat
for a visual navigation aid.
Fishing Chart—removes navigational data from the chart and enhances bottom contours for
depth recognition.
Fish Eye 3D—provides an underwater view that visually represents the sea oor according to the
chart’s information.
Using the Navigation Chart
Use the navigation chart to plan your course, view map information, and as a navigational aid.
From the Home screen, select Charts > Navigation Chart.

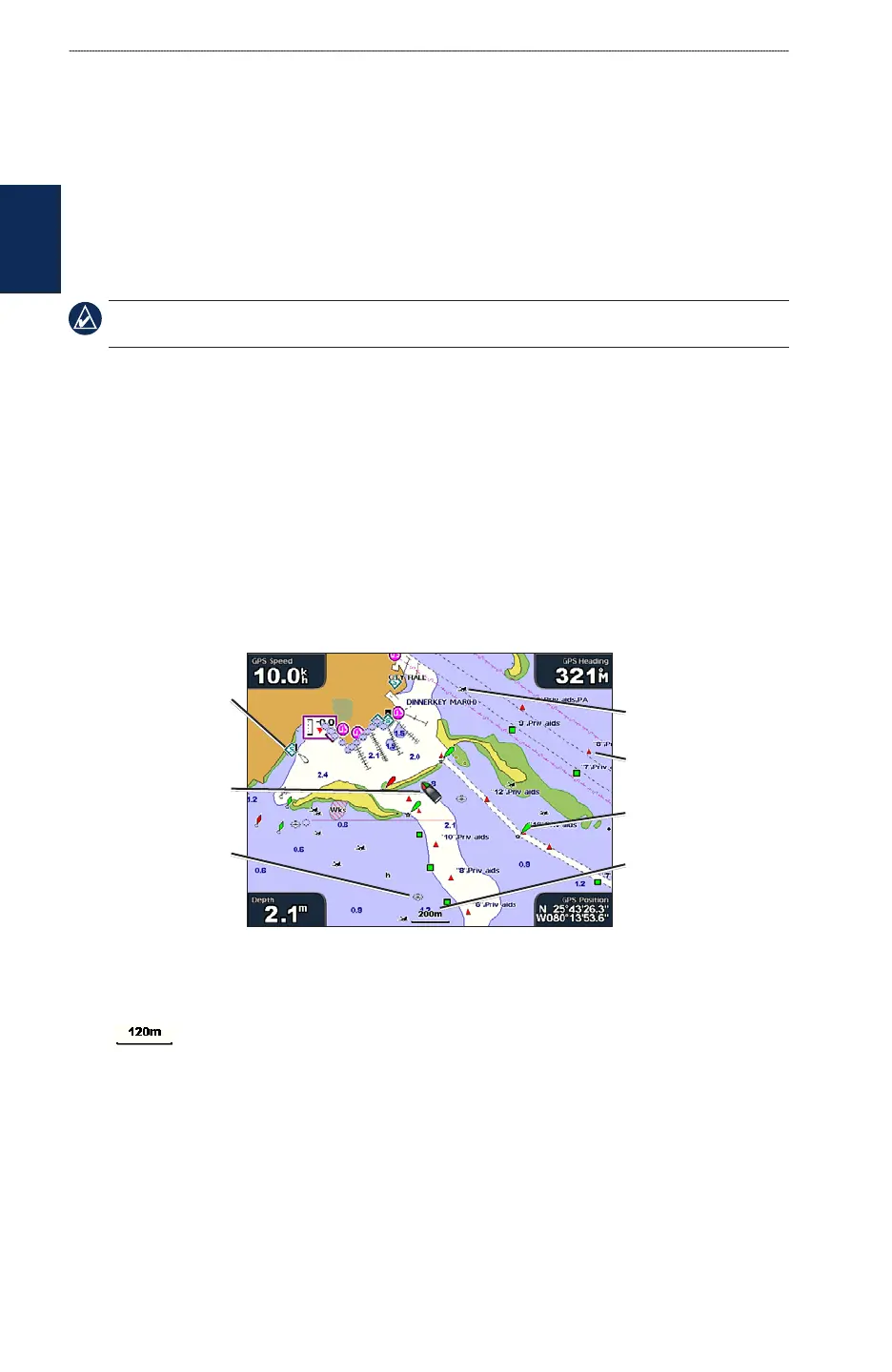

Navigation Chart with BlueChart g2 Vision Data
Buoy
Beacon
Your boat
Exposed
wreck
Marine
services
Zoom scale
Submerged
wreck
Zooming In and Out on the Map
The Range (-/+) keys control the zoom level, indicated by the scale at the bottom of the navigation
chart ( ). The bar under the number represents that distance on the map.
•
•
•
•
•
