Reference
Turn Radio/GPS On/Off
Press the THUMB STICK IN on either of these two options to toggle them from on to off.
For example, to turn GPS Off, press the THUMB STICK IN when ‘Turn GPS Off’ is highlighted.
INFORMATIONAL PICTURE
The Informational Picture on the bottom half of the Radio Page features Garmin’s Mr. Mark
Waypoint showing current GPS and radio status, and radio actions. As you operate the unit,
the graphics change depending on what actions you are taking and the unit settings.
GPS Status
Four satellites are shown on at the top of the picture along with descriptive text to indicate
GPS reception status. As the unit collects satellite information, the satellite symbols flash alter-
nately until all four are steady to indicate a 3D position fix. The more satellites that are steady,
the better your position fix.
Radio Transmission Status
As radio signals come in, signal wave symbols display to the left of Mark Waypoint.
Fragmented (or broken) signal symbols are shown to indicate activity on that channel. Audio
remains muted because the incoming signal does not match the squelch code your unit is set to.
Mark Waypoint’s indicators
The Mark Waypoint figure displays several different icons, depending on what you are do-
ing. See the following illustrations for more information.

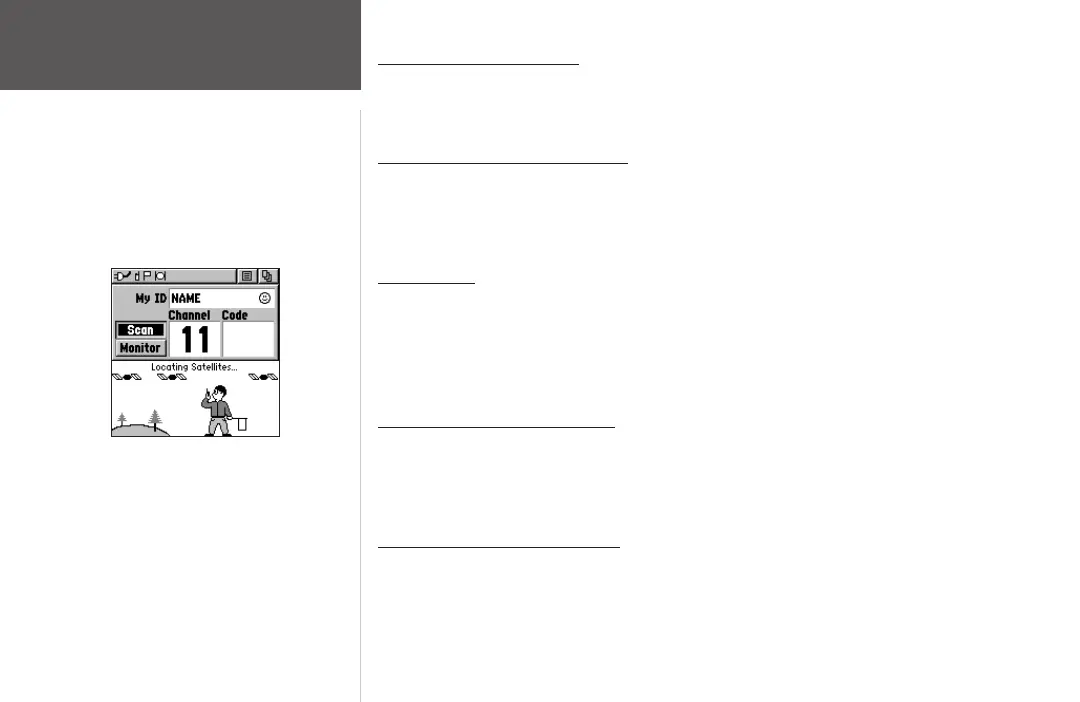

Radio Page
Informational Picture
showing Mr. Mark
Waypoint
Informational Picture Legend
Radio in Mark’s hand = radio is ready to use.
Flag in his other hand = unit ready to transmit its position
(GPS must be On to use this feature.)
Radio waves around Mark’s radio = you are transmitting
Raised flag in his hand = peer-to-peer transmission is sent
Flag on top of the hill = a position was received
