Assembly
5

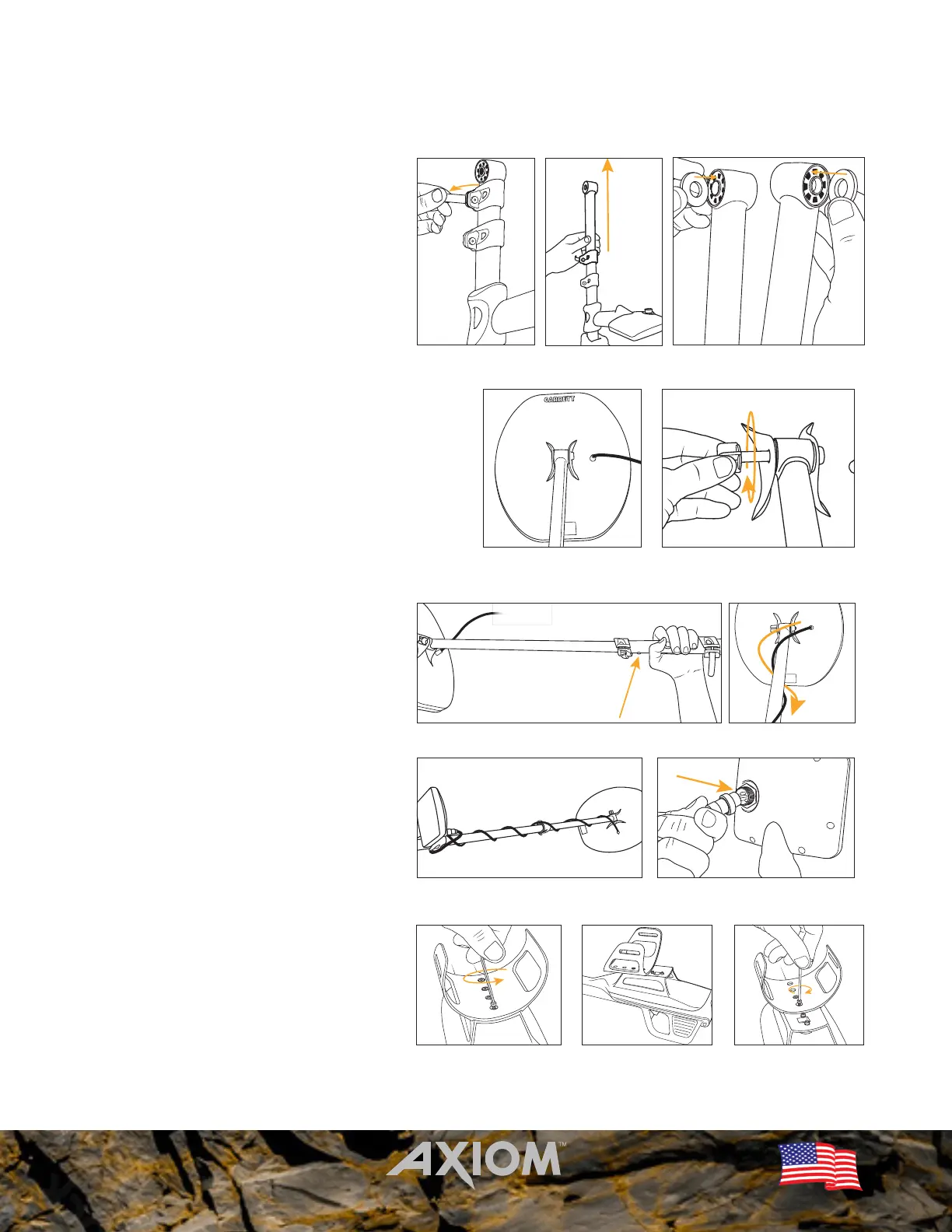

Extend shaft, insert washers
1. Release lower stem clamp.
2. Extend lower stem.
3. Press mounting washers into place.
Attach the searchcoil
1. Insert lower stem assembly into
searchcoil bracket.
2. Insert bolt in direction shown, and
lightly hand-tighten bolt.
Connect the searchcoil
1. Fully lengthen lower stem until it
snaps into place; then adjust upper
stem to comfortable length, and
close stem clamps.
2. Wrap cable snugly around stem with
rst turn of cable over the stem.
3. Insert coil connector into back of
control box, making sure to properly
line up connectors, and tighten
collar.
Adjusting arm cu (if desired)
1. Use the hex wrench (stored below
the cu ) to remove all four screws
within the arm cu.
2. Cu can be moved as many as two
slots forward or two slots backward.
(At least two bolts must be secured
through the cu for stability.)
3. Reinsert all four screws and tighten.
1 2 3
1 2
1 2a
1 2 3
2b 3
