K2 Summit and K2 Base Direct Detection Camera User's Guide
44
The microscope calibration dialog shows the table of magnification calibrations stored for the
current imaging device.
High Magnification
Record a lattice image of the crystalline sample.

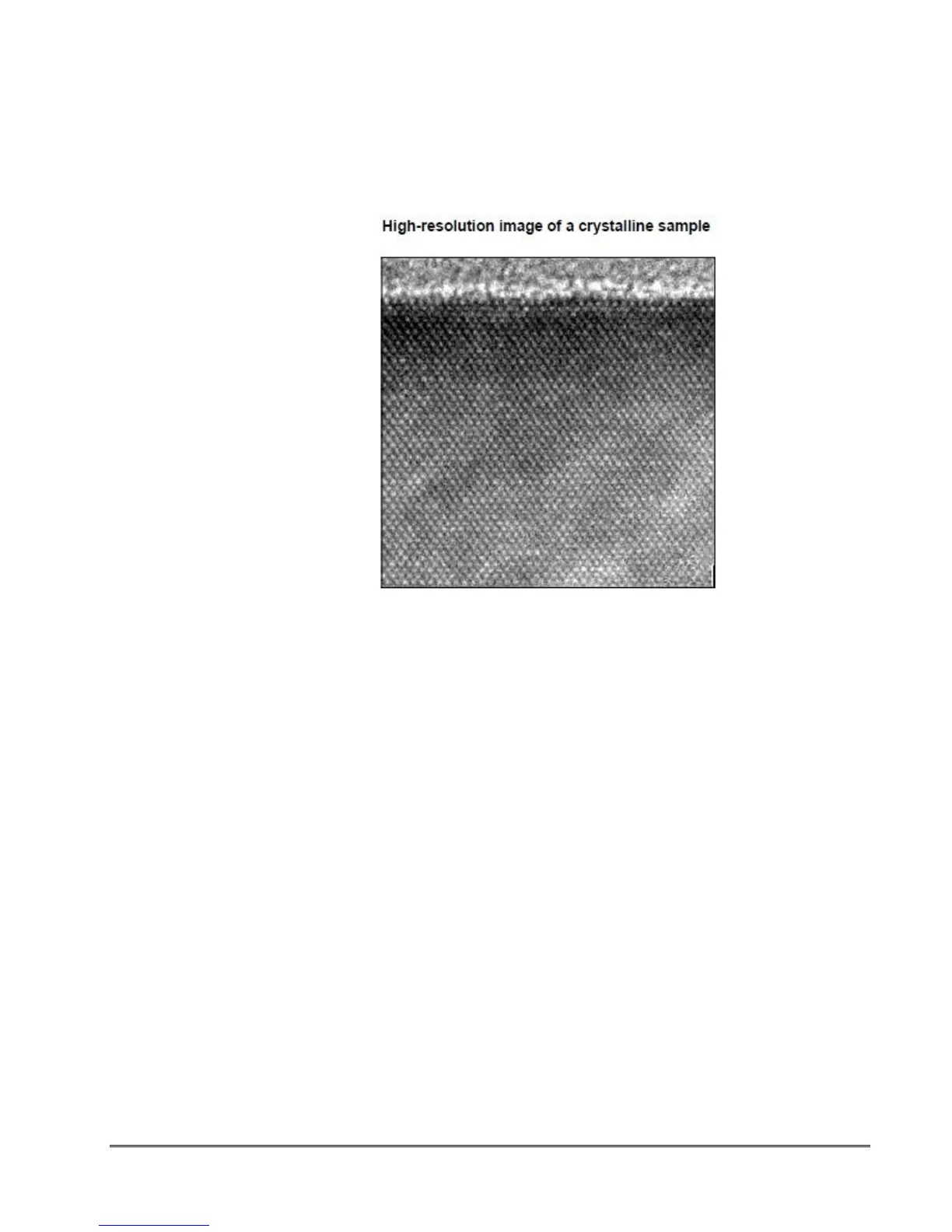

figure 1-49. High-resolution image of sample to be used in the magnification
calibration
1. Select Microscope > Calibrate image from Diffractogram.
