18 Maintaining and Troubleshooting Your E-3200 System
5.

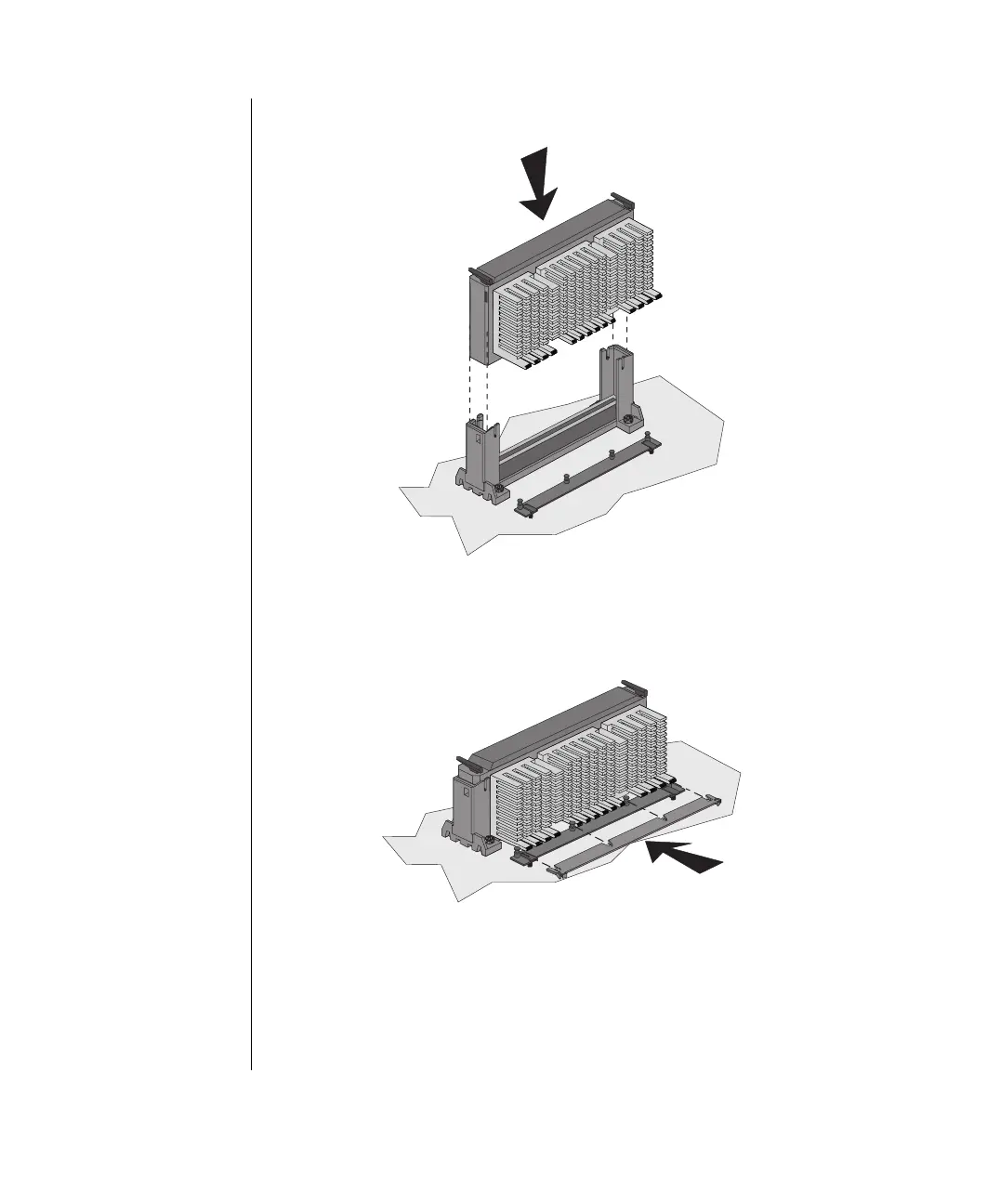

Lower the new processor into the slot until it snaps into place.
6.
Push the bottom bracket back onto the base of the processor until it
snaps into place.
7.
Move the J5G1 configuration jumper from pins 1-2 to pins 2-3 (see
“System board” on page 8 for jumper location).
8.
Close the case, as described in Chapter 1.
