24 MDS™ Master Station MDS 05-6399A01, Rev. F

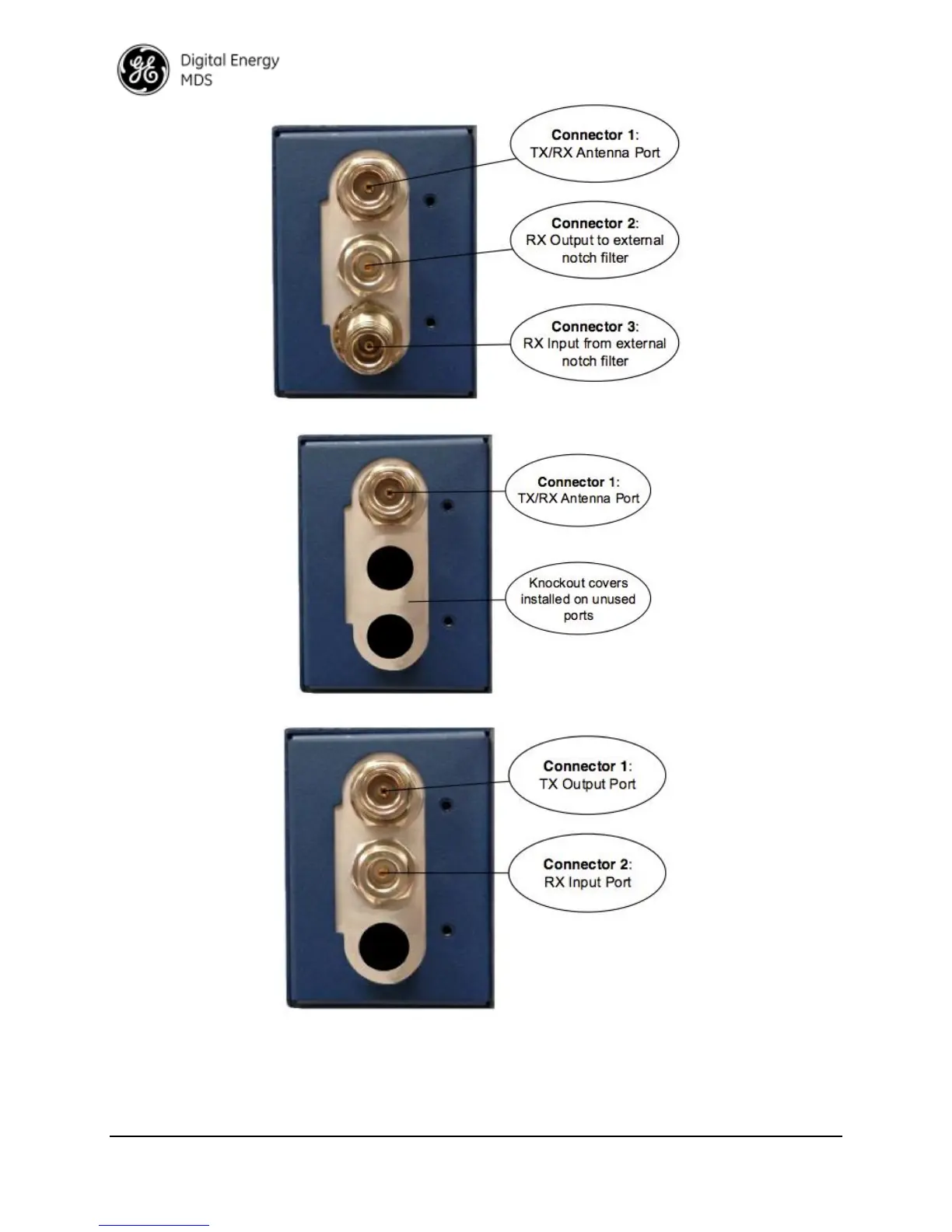

Figure 4-1. Internal Duplexer, Triple N connectors
Figure 4-2. Internal Duplexer (or internal T/R switch), Single N connector
Figure 4-3 External duplexer or dual antennas, Double C connectors
(TX and RX ports pass directly through)
4. Install the Data Interface Cabling. Interface connections are made to the front of the
Platform Manager module. Typical connections for most sites include:
