6.1 AC Power Supply Module

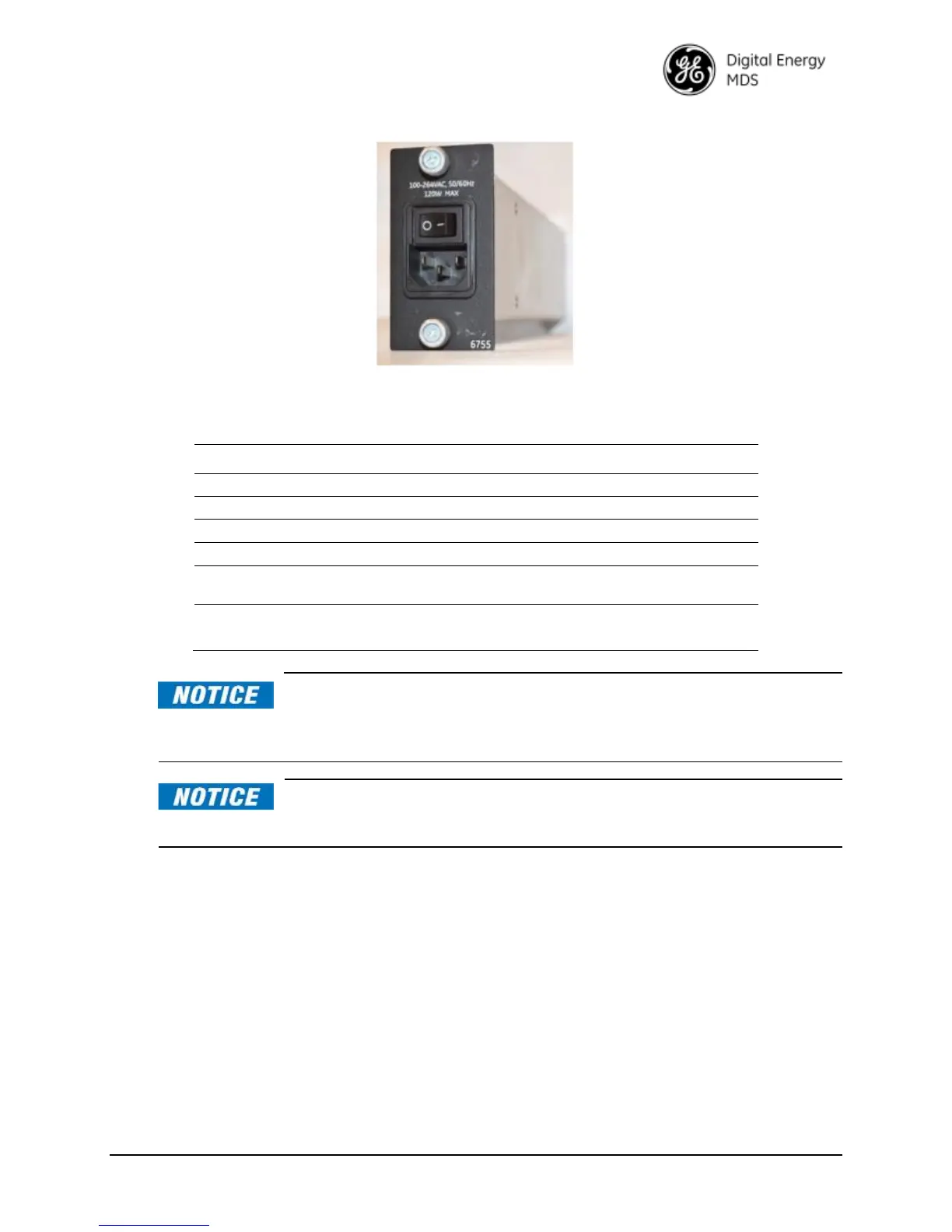

Figure 6-1 AC Power Supply Module
(Part No. 03-6755A02: 110/220 VAC)
Table 6-2. 6755 AC Power Supply Module Specifications
Integrated thermal protection, short circuit protection,
internal non-serviceable fuse
Ambient Temperature range
Full capacity from -30°C to +60°C.
CSA certified operating range -30°C to +39°C.
Master station power supply modules are field replaceable units that can
be removed from an operating system so long as the input power source
to the module being replaced has been disconnected. Refer to Section 8.4 Replacing
Modules for information on removal and installation.
When installing AC Power Supply modules, torque thumbscrews to 10
in-lbs, or approximately ¼ turn past hand tight, to insure optimum heat
transfer through thermal contact connector on the rear of the unit.
