MDS 05-6399A01, Rev. F MDS™ Master Station 43
overhead is used to accomplish these tasks, which translates to increased bandwidth efficiency of
the radio channel with minimal latency, ensuring that messages are delivered in a timely manner.

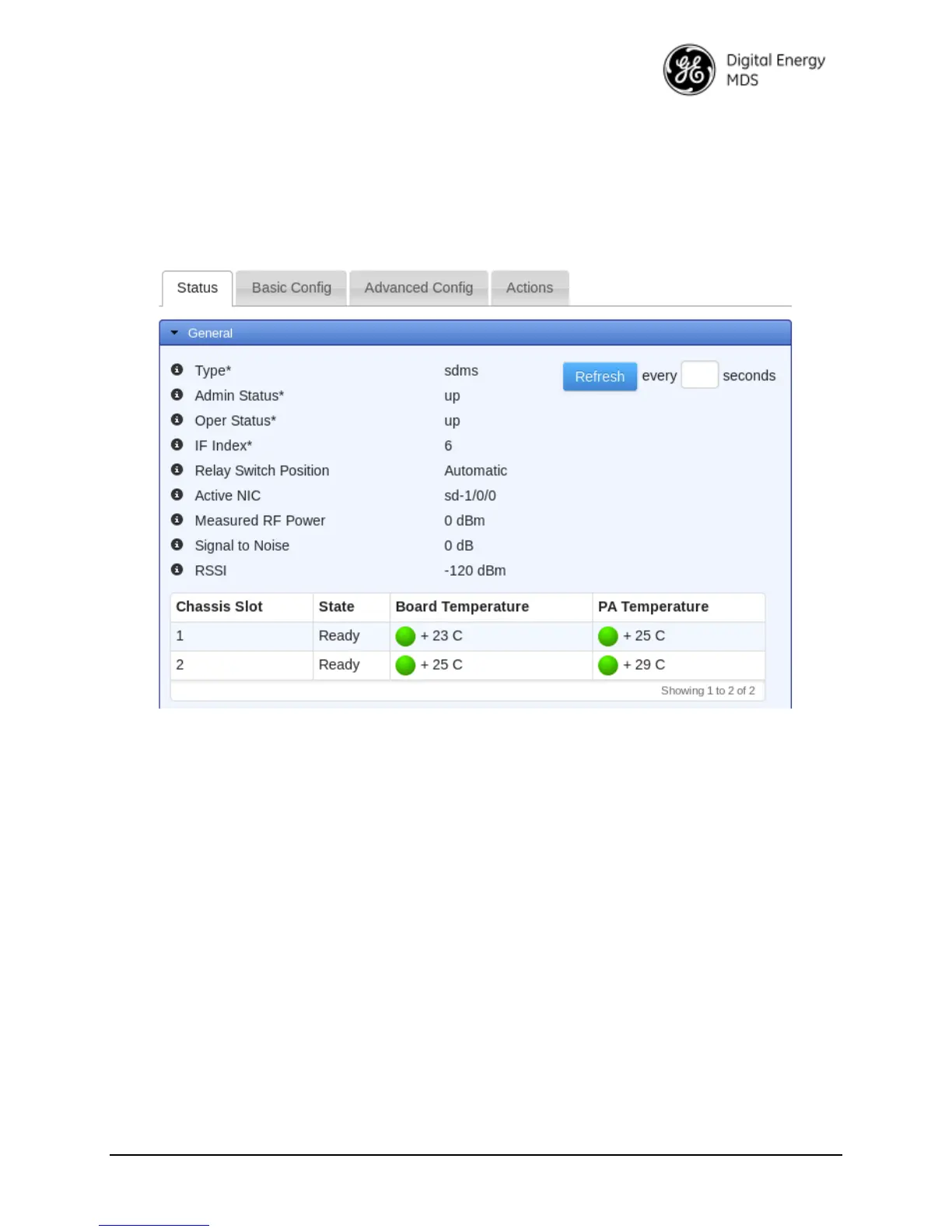

Status Tab
The Status tab on the sdms interface page gives an overview of the current state of the sdms
interface. The information displayed is described below:
General
This section shows a general overview of the SDMS interface. The current status of the relay
switch, as well as which SD NIC is currently active is displayed here.
The NIC Status table is composed of the following columns:
• Chassis Slot – The slot in which the SD NIC was discovered.
• Board Temperature – The current temperature in degrees C as measured on the surface
of the SD NIC. The colored indicator will transition to yellow and red as the NIC
approaches its operational limits.
• PA Temperature – The current temperature in degrees C of the power amplifier on the
SD NIC. The colored indicator will transition to yellow and red as the NIC approaches its
operational limits.
Configuration
From the sdms interface page, all SD related configuration options can be specified. Primary SD
network configuration can be found under the ‘Basic Config’ tab, more advanced options can be
found under the “Advanced Config” tab, and operational actions can be found under the
“Actions” tab.
