72 MDS™ Master Station MDS 05-6399A01, Rev. F
• Com 1 Tx Bytes – The total number of transmitted bytes on the COM1 port.
• Com 1 Rx Bytes – The total number of received bytes on the COM1 port.
• Com 2 Tx Bytes – The total number of transmitted bytes on the COM2 port.
• Com 2 Rx Bytes – The total number of received bytes on the COM2 port.
• Pmux Tx Packets – The total number of data packets transmitted.
• Pmux Rx Packets – The total number of data packets received.
• Com 1 Tx Packets – The total number of transmitted packets on the COM1 port.
• Com 2 Tx Packets – The total number of transmitted packets on the COM2 port.
• Eth Tx Packets – The total number of transmitted packets on the Ethernet port.

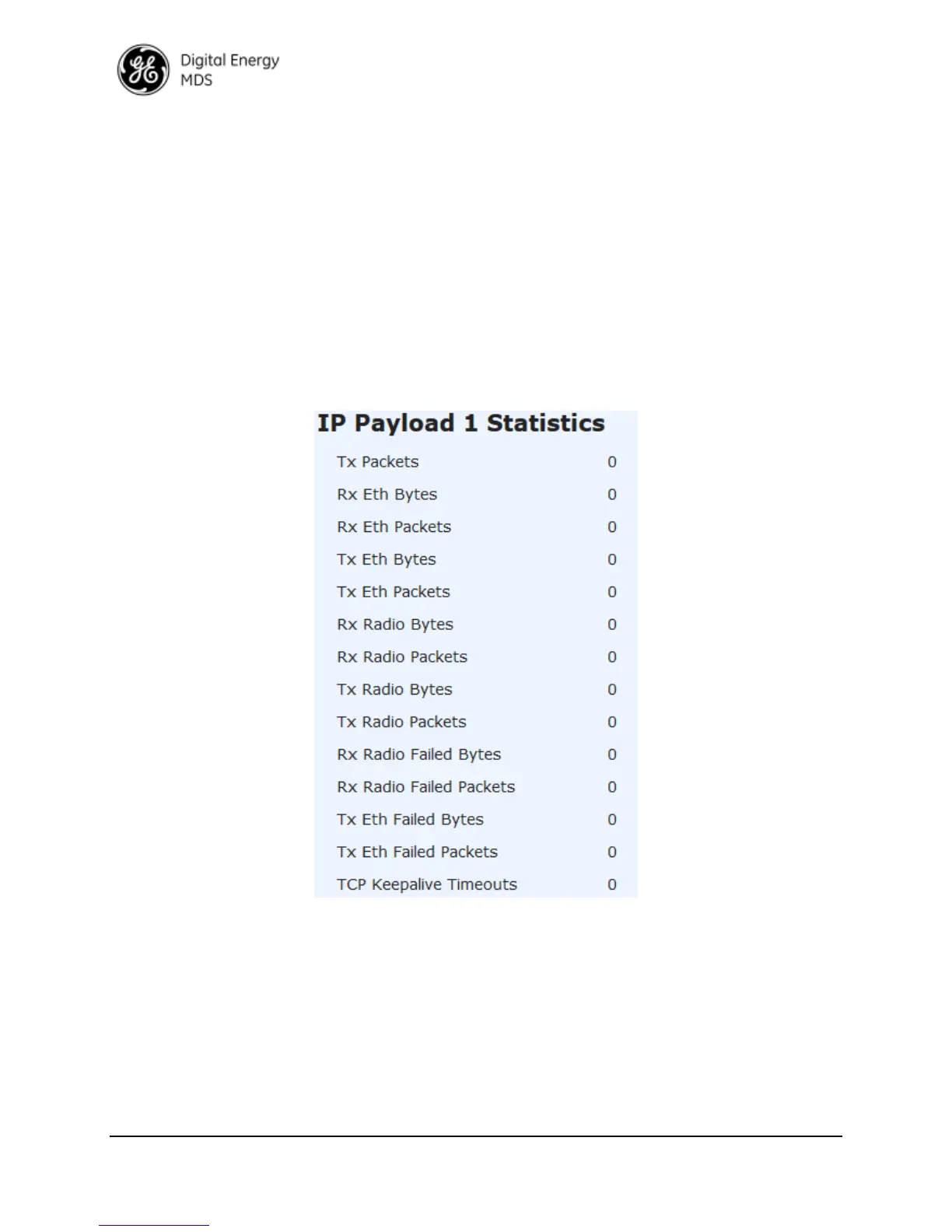

IP Payload (1, 2 or 3) Statistics
• Tx Packets – Total number of transmitted packets.
• Rx Eth Bytes – Total number of received bytes on the Ethernet.
• Rx Eth Packets – Total number of received packets on the Ethernet.
• Tx Eth Bytes – Total number of transmitted bytes on the Ethernet.
• Tx Eth Packets – Total number of transmitted packets on the Ethernet.
• Rx Radio Bytes – Total number of received bytes through the radio.
• Tx Radio Bytes – Total number of transmitted bytes through the radio.
