Remote’s AP Info (Remote Only):

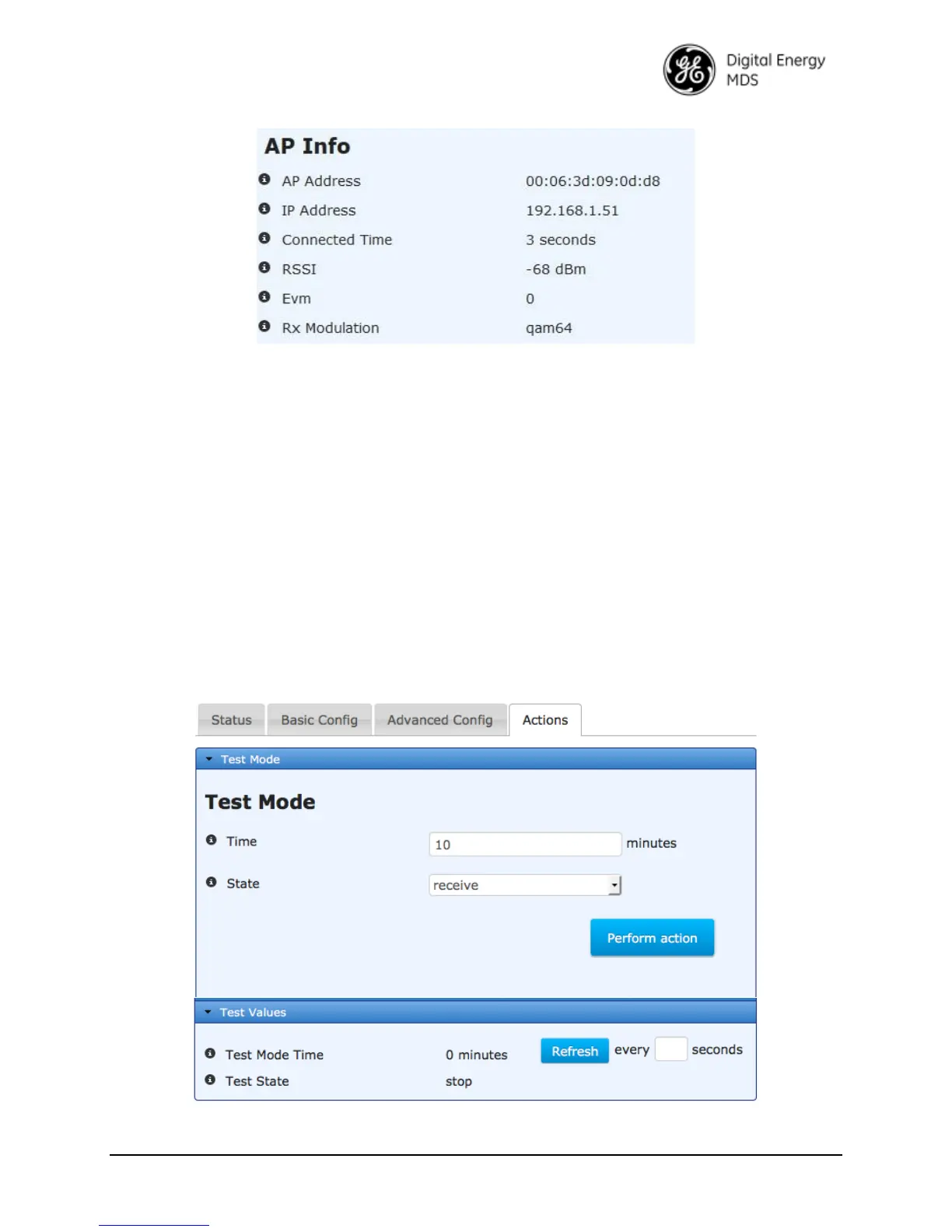

Figure 5-16. Licensed Narrowband (LN) Remote’s AP Information
AP Address - MAC address of access point this device is linked to.
IP Address - IP address of access point this device is linked to.
Connected Time - Time elapsed in seconds since link established. After 4294967295 seconds,
the value displayed rolls over to 0.
RSSI - The RSSI measured at the time of the last received packet. If using this reading to align
an antenna or gather link status information, we recommend setting the page refresh to 3
seconds.
EVM - The Error Vector Magnitude measured at the time of the last received packet. For
more information, refer to See Table 6-14. LN Interface LED Descriptions for details on how
to interperate the LEDs on an LN radio.
Important Notes and Information Regarding EVM
Rx Modulation - The modulation measured at the time of the last received packet.
Test Mode
Interfaces / lnms
Actions
Test Mode provides a way to place the transmitter on the air to check the measured RF power
output, measure reflected power from an antenna system, or to provide a signal at a receiving
