CHAPTER 8: IEC 61850 THE IEC 61850 CONFIGURATOR
8 SERIES PROTECTIVE RELAY PLATFORM – COMMUNICATIONS GUIDE 8-15

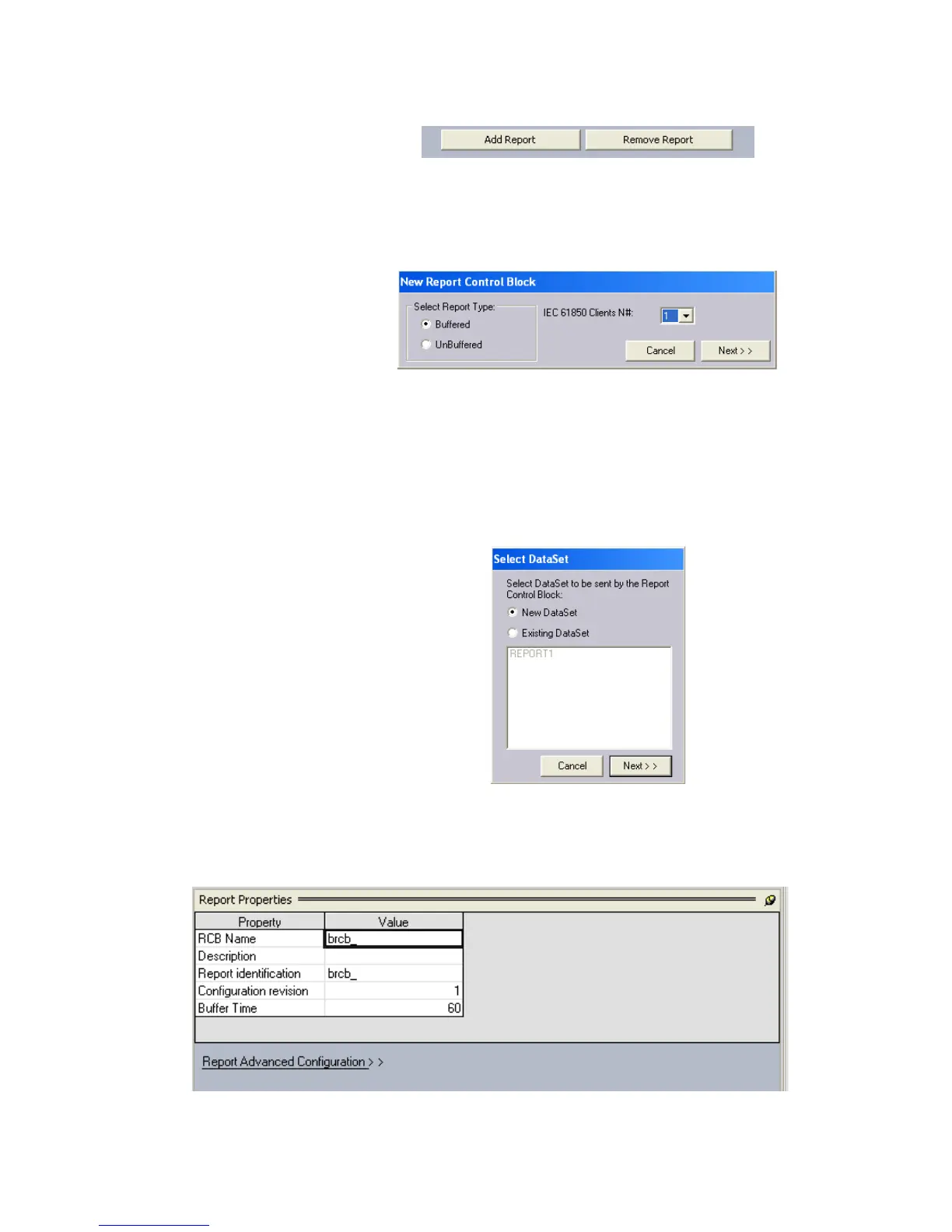

1. Click on the “Add Report” button.
The button is available in the lower side of the screen and is used to add a report
control block. (a Report can also be added by right clicking “845” (or your relay model
number) under GEDevice “tree”.)
The “New Report Control Block” window appears.
Figure 8-3: New Report Control Block Window
2. In the “New Report Control Block” window under “Select Report Type”, select the radio
button for a buffered or unbuffered report.
3. In the “IEC61850 Clients N#” dropdown list, select 1 or any other available number.
4. Click the “Next” button to proceed with further configuration (else click “Cancel” to
discard the new configuration).
5. In the “Select DataSet” window, select the radio button for “New DataSet” or “Existing
DataSet”.
Figure 8-4: Select DataSet Window
Report Properties
The report properties section can be viewed when any configured report available under
GEDevice > 8 Series relay is selected.
Figure 8-5: Report Properties Window
