CHAPTER 8: IEC 61850 THE IEC 61850 CONFIGURATOR
8 SERIES PROTECTIVE RELAY PLATFORM – COMMUNICATIONS GUIDE 8-17

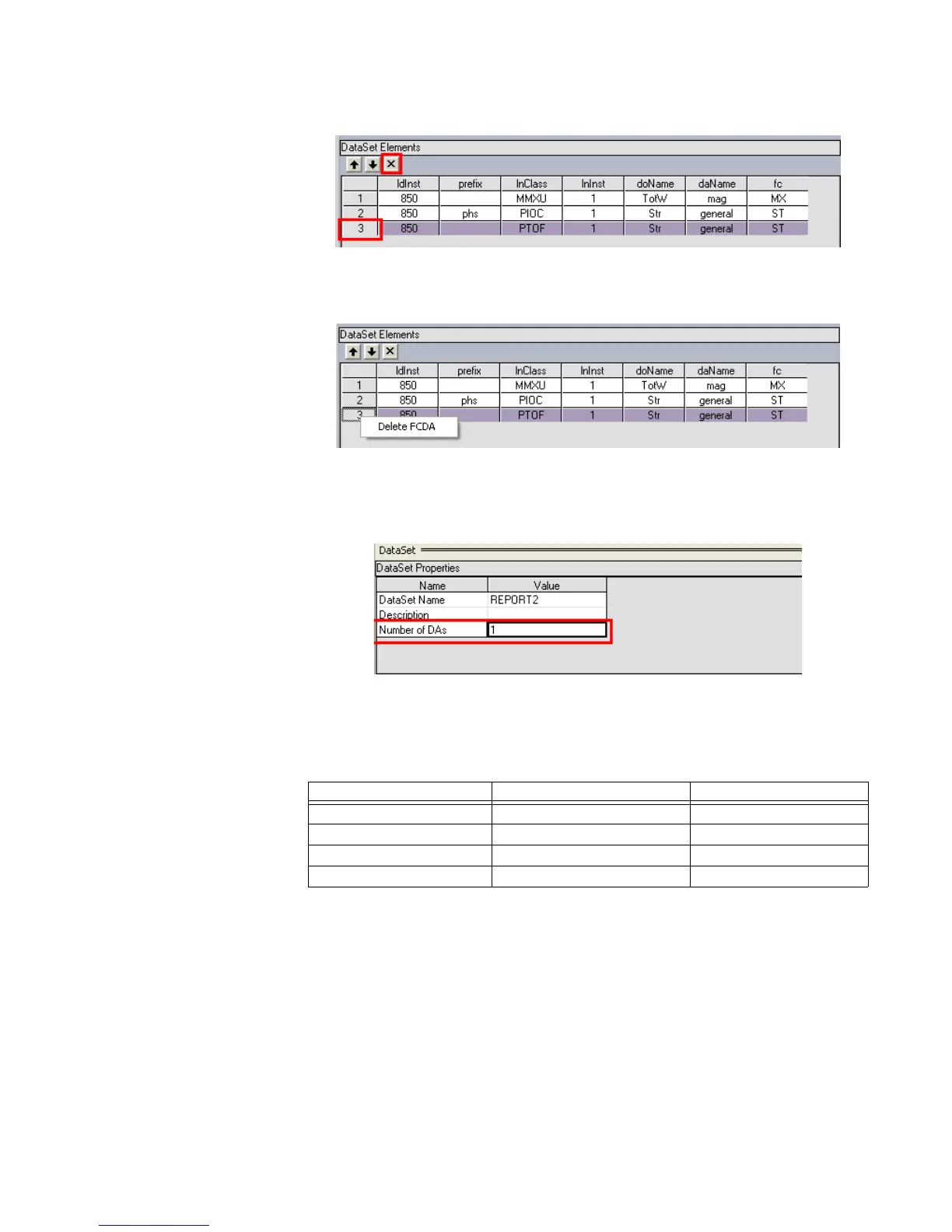

Figure 8-9: Delete a Dataset Item
• Select the row in which the dataset item is to be deleted then right click and select the
displayed “Delete FCDA” option.
Figure 8-10: Delete FCDA Option
Number of DAs Counter
Depending on the configured dataset items, the “Number of DAs” counter increases
automatically.
Figure 8-11: Dataset Properties
Maximum Report Control Blocks
The 8 Series relay supports a maximum of 4 report control blocks. Buffered and unbuffered
reports are both included in the maximum. The user can configure reports based on the
Report Configurations Supported table as follows.
Table 8-2: Report Configurations Supported
Buffered Report Unbuffered Report Total Reports
4 0 4
3 1 4
2 2 4
1 3 4
