18 1200C-2000C Fire Alarm Control Panel, Repeater, and Black Box Installation Manual
PS2000N power supply unit connections
The PS2000N is the main power supply unit for 1200C-2000C control panels and
complies with all EN 54 requirements when used with these products.

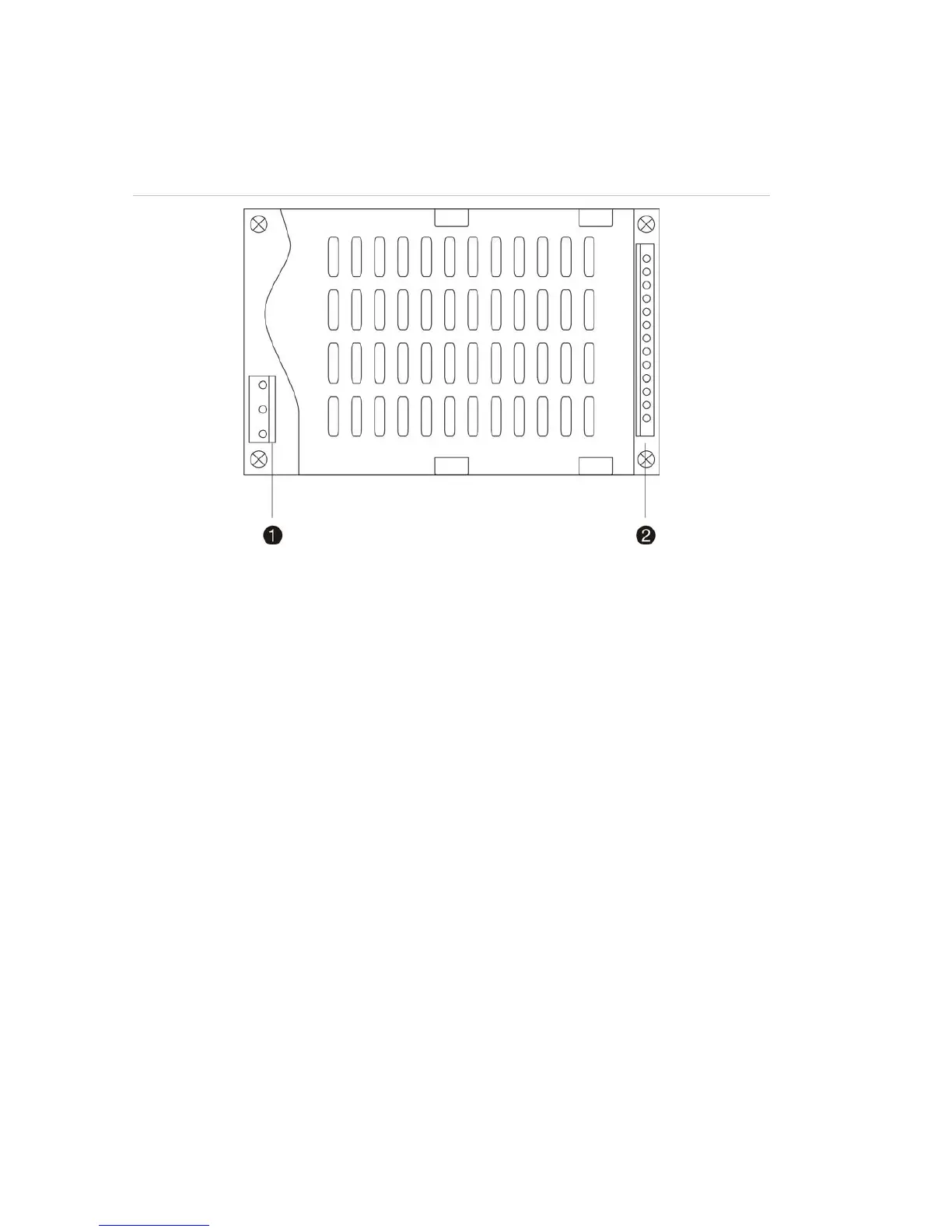

Figure 16: PS2000N layout and connections
1. Fuse terminal block connector
2. PS1200N connector
