1200C-2000C Fi
re Alarm Contr
ol Panel, Repeater
, and Black Box I
nstallation Man
ual
19
Fuse terminal block connections
The 230 VAC mains power supply is connected di
rectly to the fuse terminal block as
shown below.

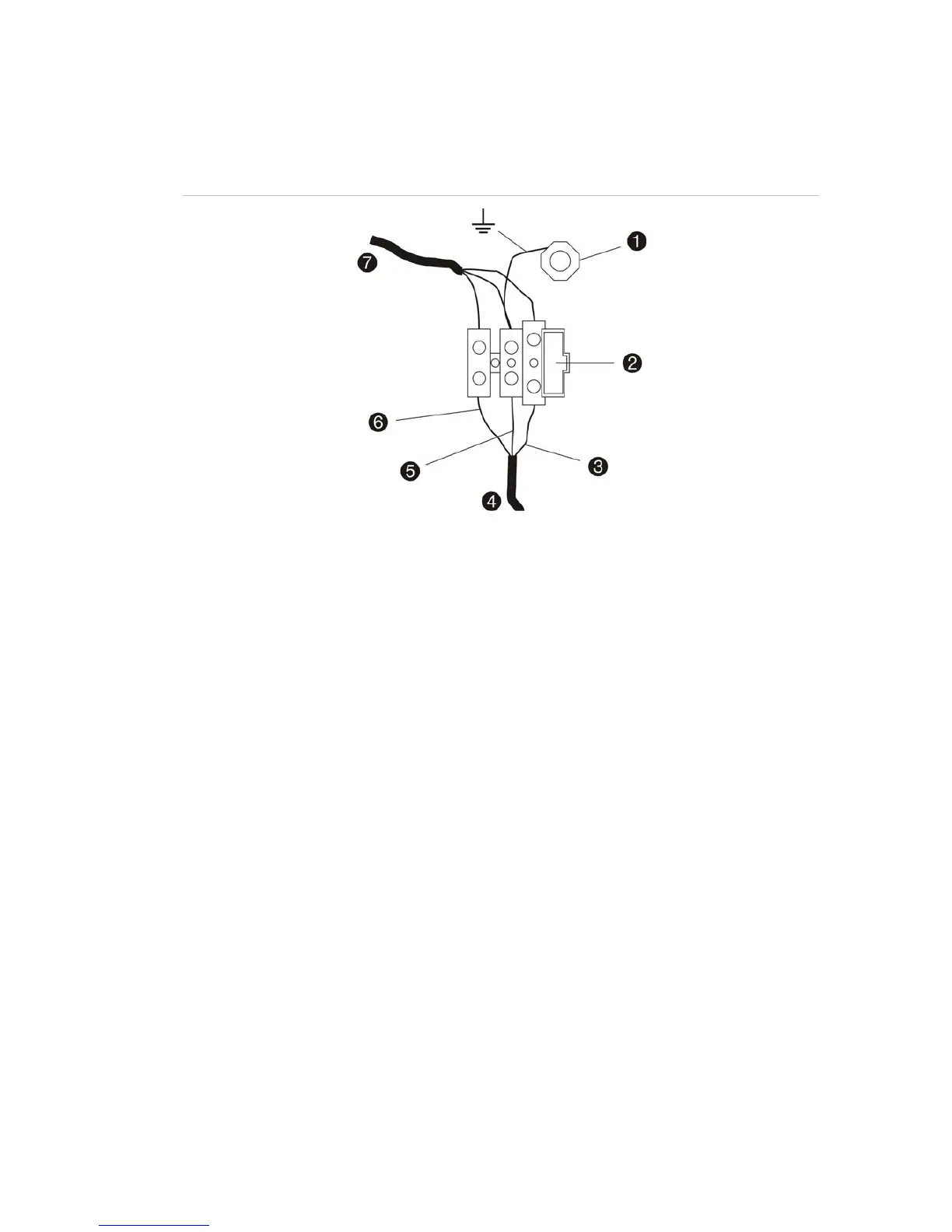

Figure 17: Fus
e terminal block connec
tions
1. Earth
stud
2. Fuse
3. Live
wire
4.
Incoming 230 VAC mains cable
5. Earth
wire
6. Neutral
wire
7.
Cable connection to PS2000N power supply input
22
