1200C-2000C Fire Alarm Control Panel, Repeater, and Black Box Installation Manual 23

24 VDC power supply connections for repeaters

24 VDC power supply connectors for repeaters are located on the termination board.

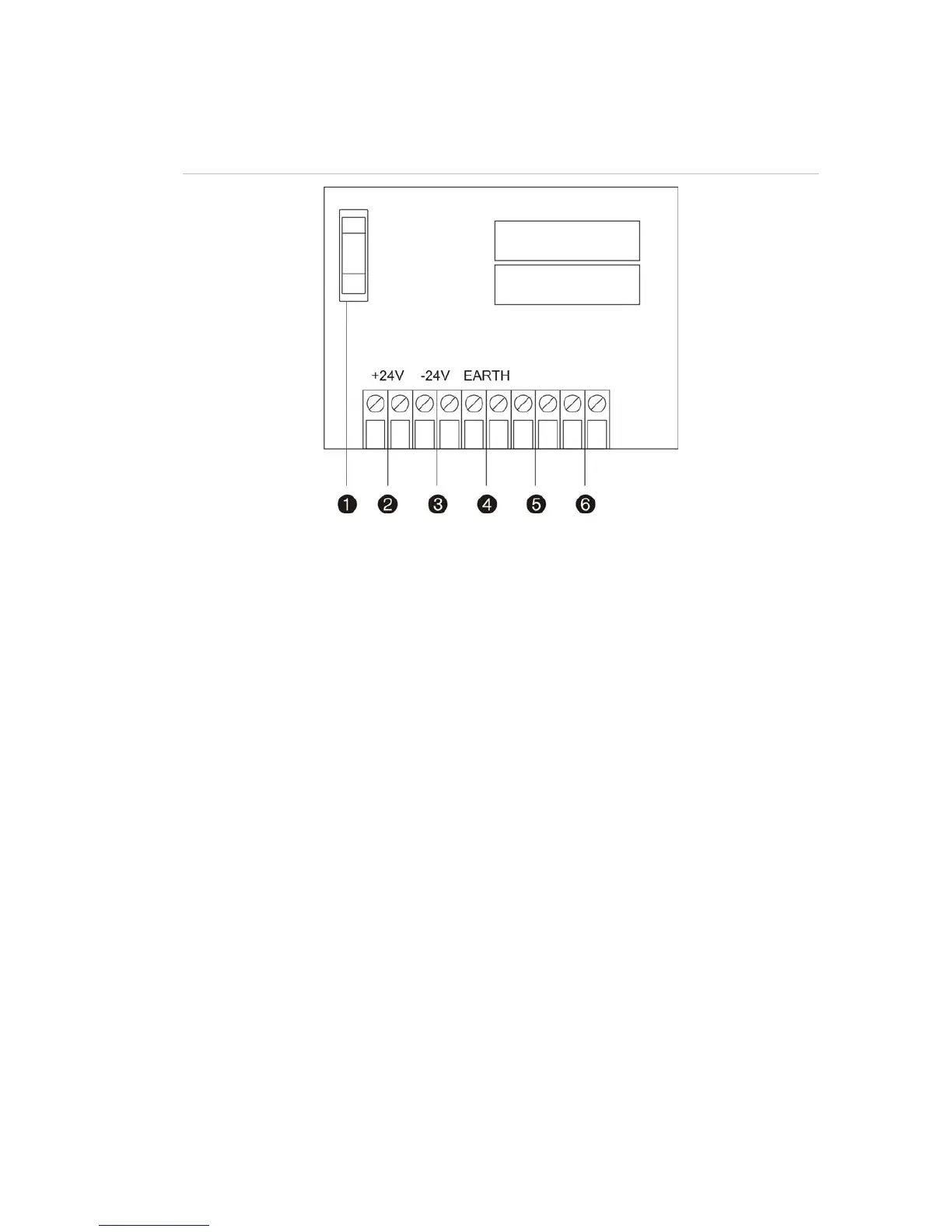

Figure 21: 24 VDC power supply connections

1. Fuse

2. +24V connector

3. -24V connector

4. Earth connector

5. Charger fail (normally shorted input)

6. Mains supply fail (normally shorted input)
