Z For future reference, enter some useful information in the Description
box to facilitate the identification of the device and the purpose of the
file.
Z To select a file name and path for the new file, click the button [...]
beside the File Name box.
Z Select the file name and path to store the file, or select any displayed file
name to update an existing file.
All 469 Settings Files should have the extension ‘469’ (for example,
‘motor1.469’).
Z Click Next and OK to continue the process.

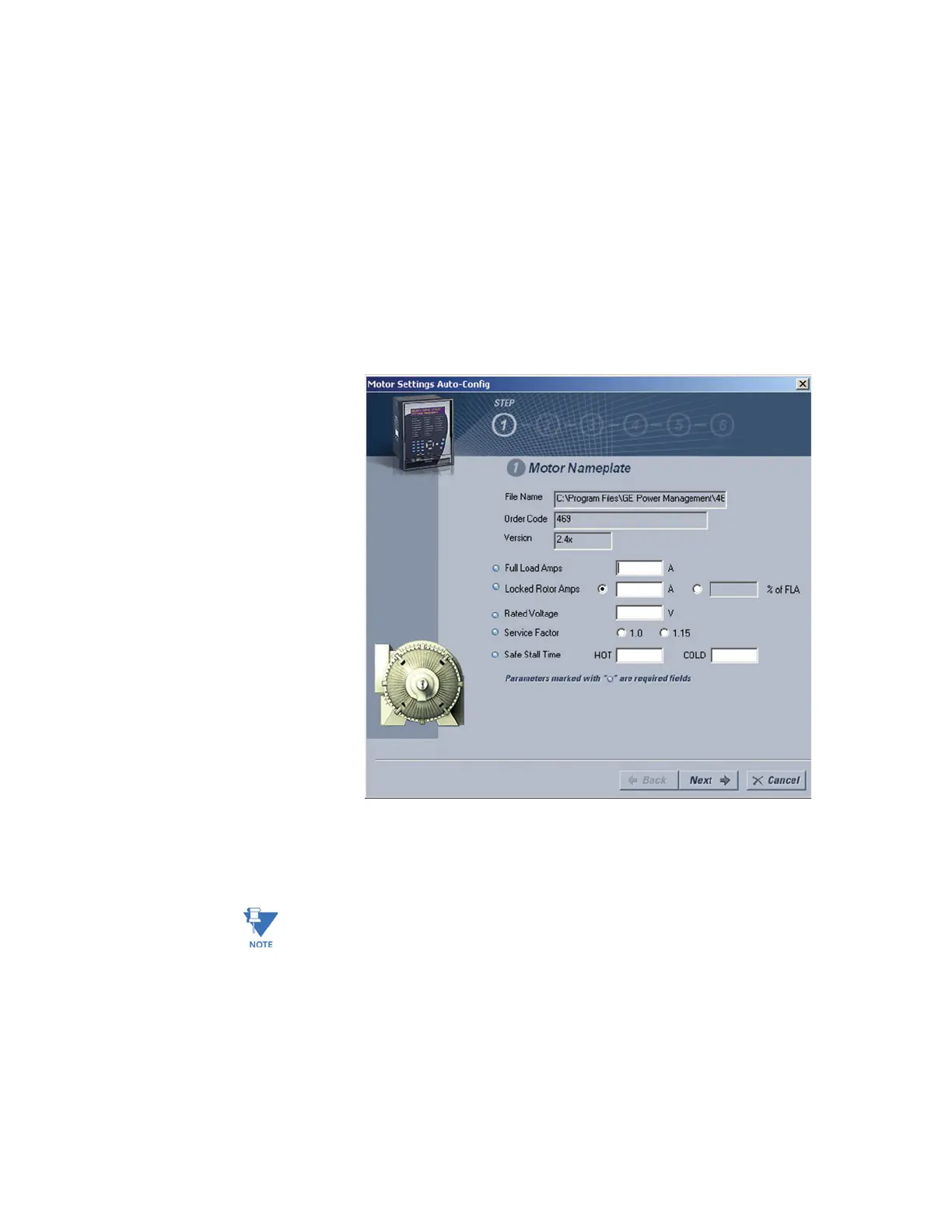

A new window - Step 1 - will appear:
Z Fill in the fields as indicated.
Z When complete, press Next.
The next window - Step 2 - will appear as follows:
Note
As each Step is completed, the user will be prompted to make appropriate changes to
what has been entered, if the Auto-Config determines that the parameter entered is
incorrect or inappropriate for the situation.
