4–28 469 MOTOR MANAGEMENT RELAY – INSTRUCTION MANUAL

CHAPTER 4: INTERFACES

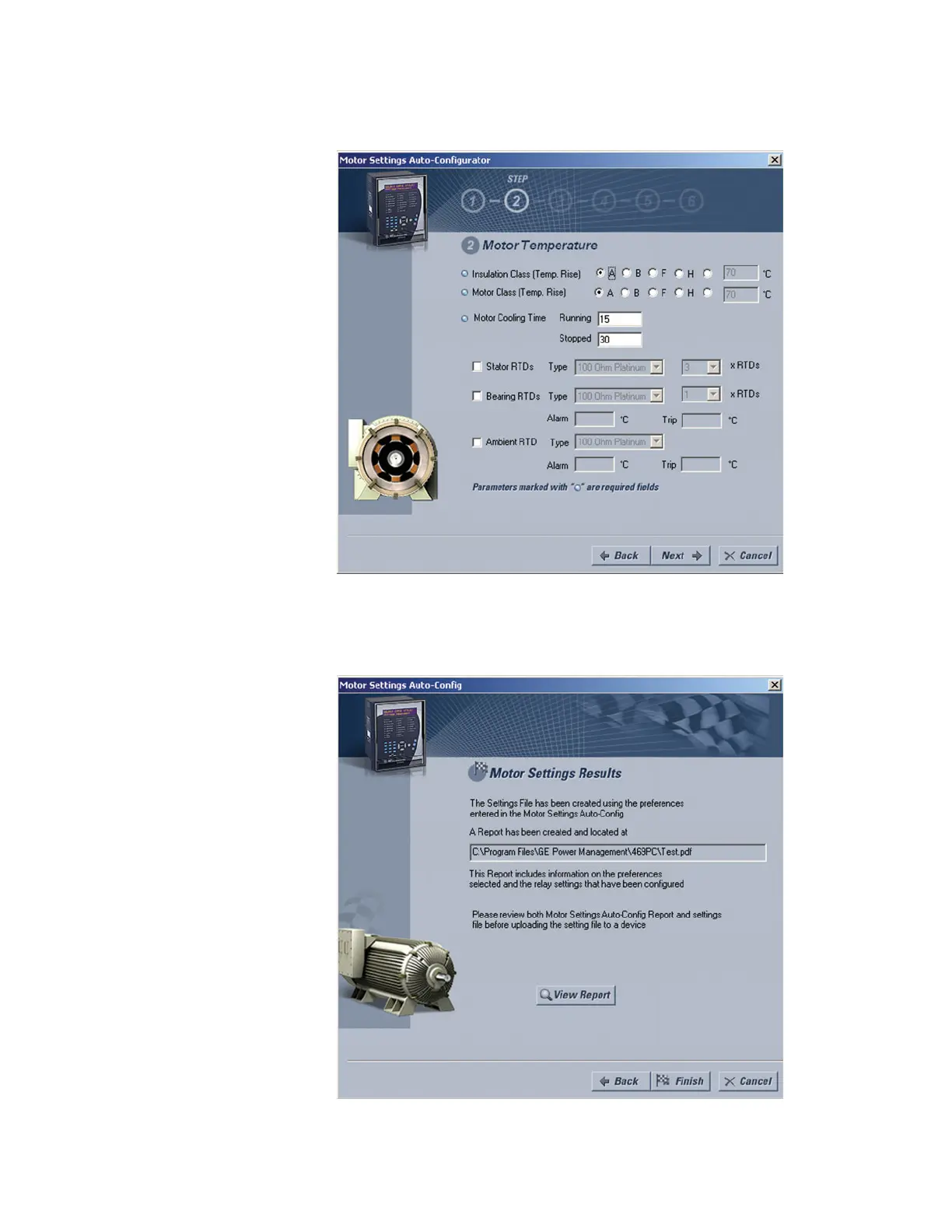

Z Continue filling in the fields as indicated.

Once you have completed all 6 Steps, the final window will show as follows:
