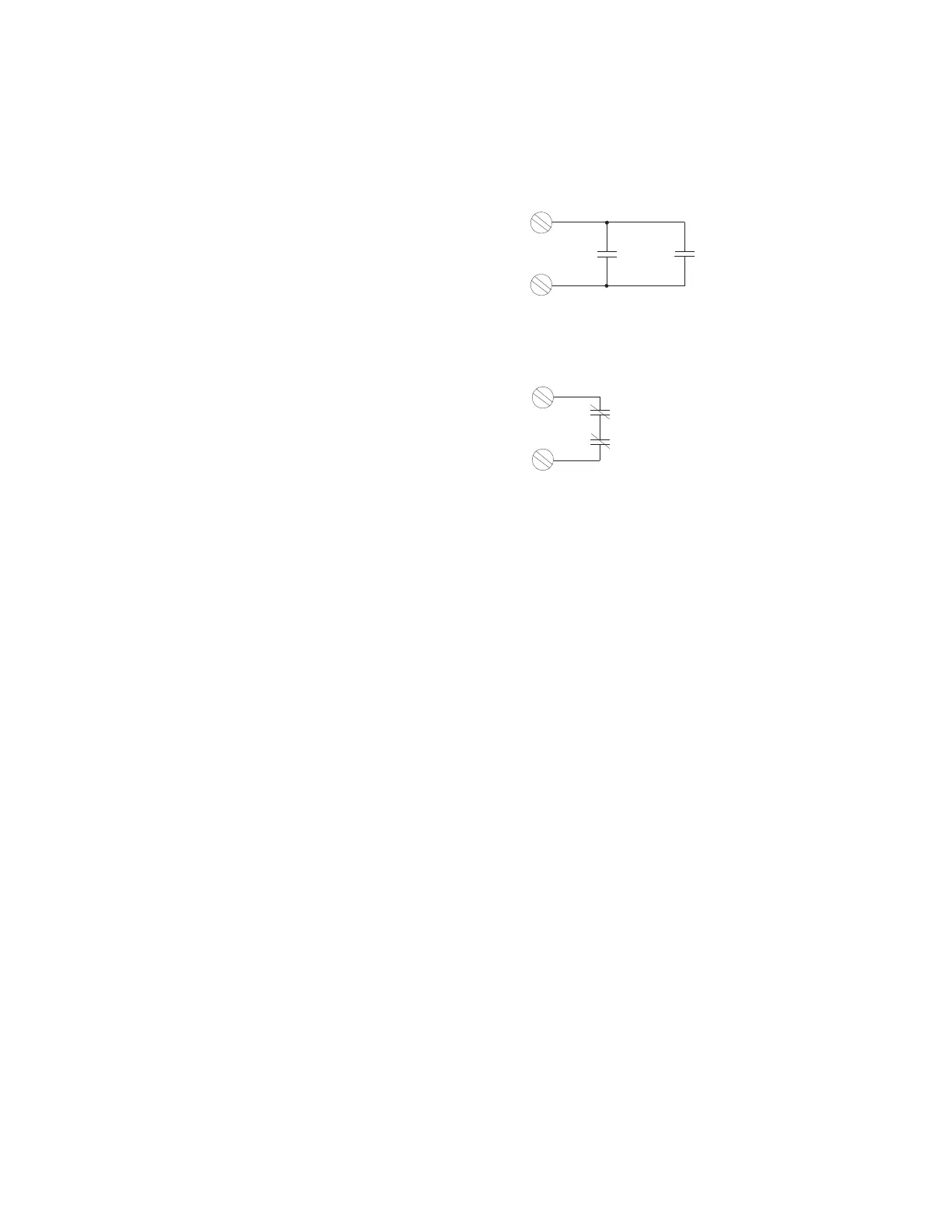

FIGURE 5–3: Reduced Voltage Starter Inputs
808723A1.CDR
FULL VOLTAGE
AUXILIARY ‘a’
REDUCED VOLTAGE
AUXILIARY ‘a’
STARTER STATUS
SWITCH INPUT
(Setpoint = ‘Starter Auxiliary A’)
D16
D23
REDUCED VOLTAGE STARTER AUXILIARY ‘A’ STATUS INPUT
REDUCED VOLTAGE STARTER AUXILIARY ‘B’ STATUS INPUT
REDUCED VOLTAGE
AUXILIARY ‘b’
FULL VOLTAGE
AUXILIARY ‘b’
D16
D23
STARTER STATUS
SWITCH INPUT
(Setpoint = ‘Starter Auxiliary B’)
