Monitoring basics
Warnings
• Ensure modules are oriented with release latch downward to
ensure retention.
• The parameter modules are not able to withstand unpacked
drops from a height of 1 m without damaging the module
latches. If the device is dropped, please service the device before
taking it back into use.
• After transferring or reinstalling equipment, always check that
equipment is properly connected and parts are securely
attached.
• Do not use without manufacturer approved mounting.
• Do not install equipment above the patient.
• Be careful not to drop modules while detaching.
• Do not touch the back of frame enclosure in normal use.
Cautions
• Do not drop battery or subject to mechanical shock.
• Use only the recommended batteries.
• Malfunction may cause gases to vent.
• SAFETY GROUND PRECAUTION - Remove power cord from the
mains source by grasping the plug. DO NOT pull on the cable.

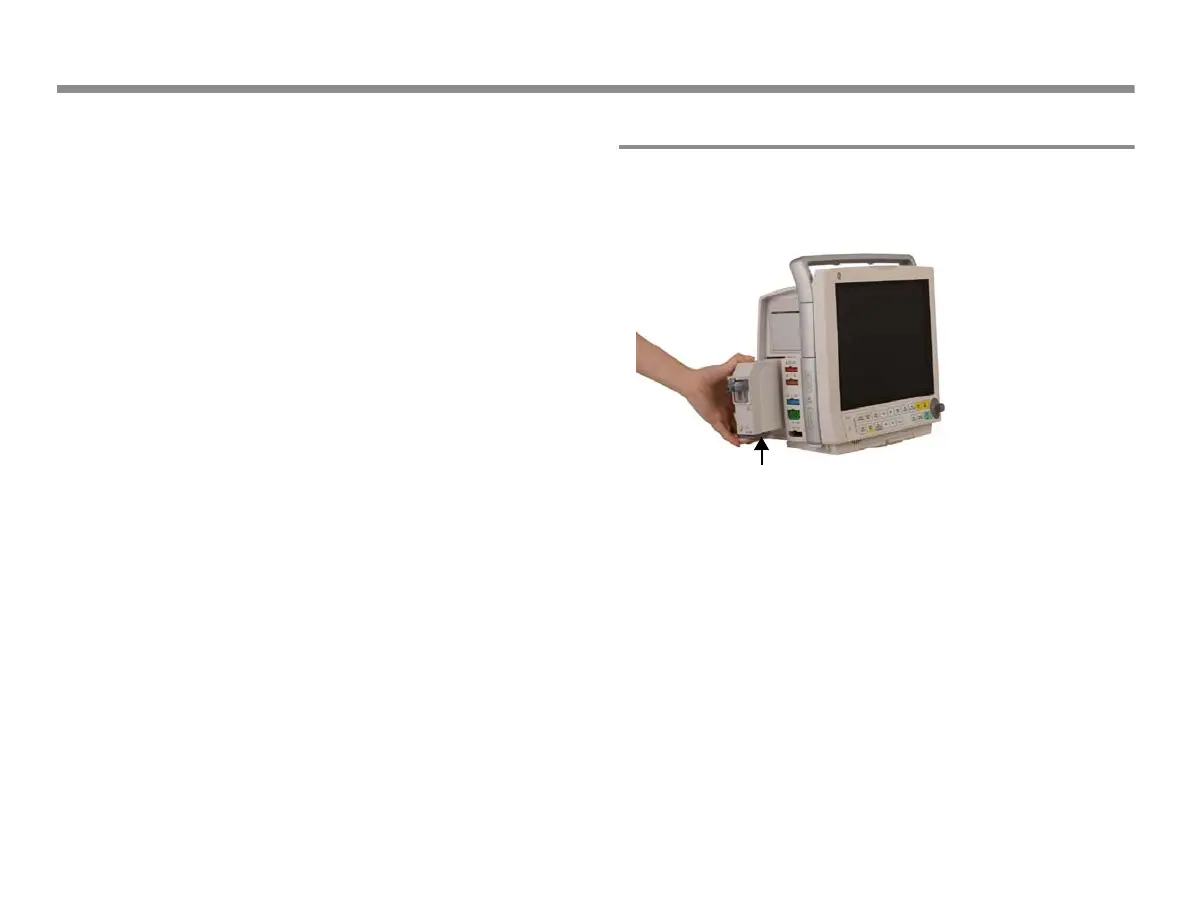

Inserting and removing acquisition modules
To use the acquisition module, your monitoring device need to be
pre-configured with the extension rack.
To insert module:
1. Align the module with the insertion guides.
2. Push the module into the monitor frame until it clicks and stops.
3. Pull the module outwards to insure the module is firmly seated.
To remove module
1. Pressing the release latch on the bottom lefthand side of the
module.
2. Grasp the module firmly and pull out of the Frame. Ensure not to
drop the module during removal.
