Chapter 1. Installation
2 DigitalFlow™ XGM868i Startup Guide
1.3 Site Considerations
Because the relative location of the flowcell and the electronics enclosure is important, use the guidelines in this
section to plan the XGM868i installation. Figure 1 shows a typical XGM868i enclosure and spoolpiece ready for
insertion into a process line.

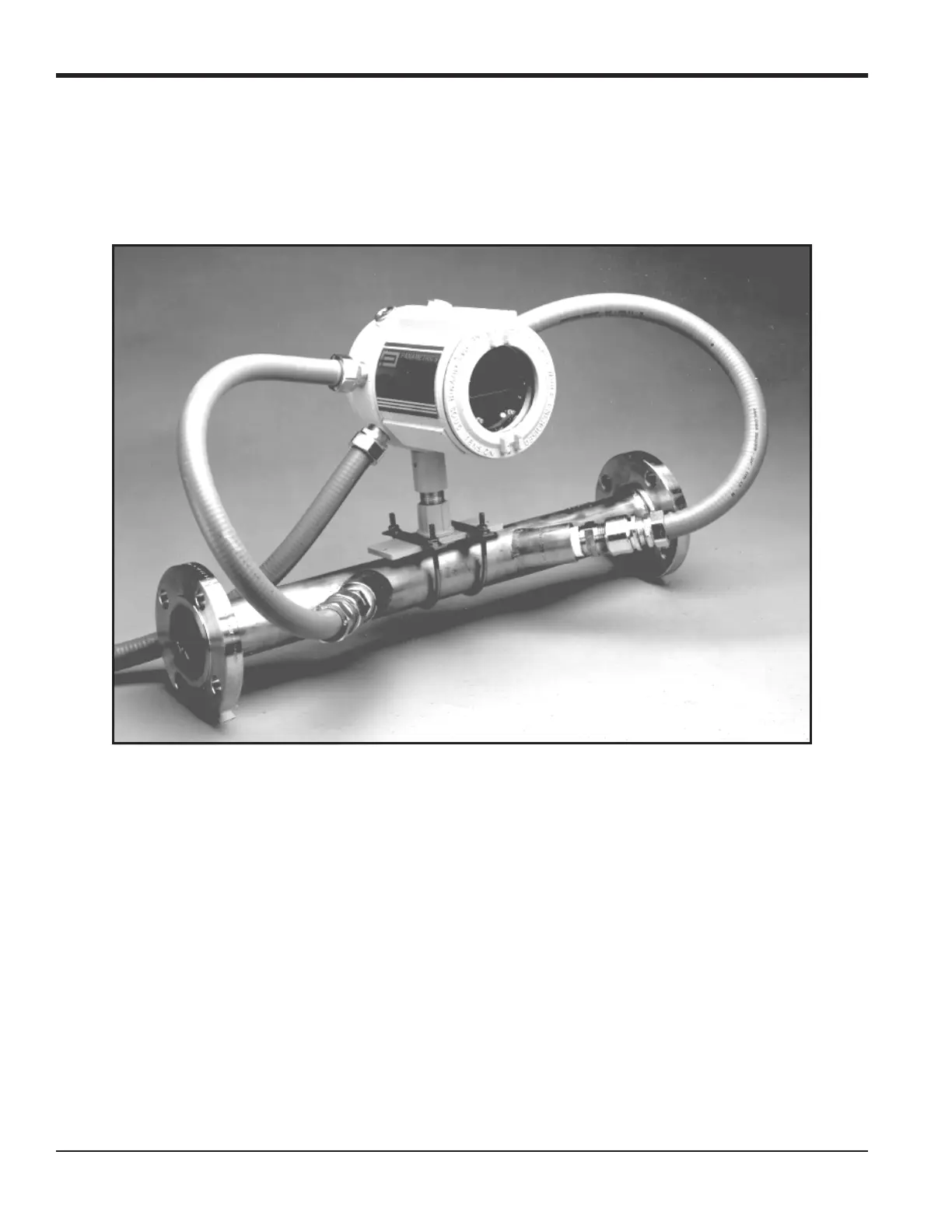

Figure 1: A Typical Model XGM868i System
1.3.1 Electronics Enclosure Location
The standard Model XGM868i electronics enclosure is a powder-coated, cast-aluminum, Type-7/4X explosion-proof
enclosure; an optional stainless-steel enclosure is available. Typically, the enclosure is mounted as close as possible to
the transducers. When choosing a site, make sure the location permits easy access to the electronics enclosure for
programming, maintenance and service.
Note: For compliance with the European Union’s Low Voltage Directive (2006/95/EC), this unit requires an external
power disconnect device such as a switch or circuit breaker. The disconnect device must be marked as such,
clearly visible, directly accessible, and located within 1.8 m (6 ft) of the Model XGM868i.
