5 K0430 Issue No. 2
SOFT KEYS (Fig. 1)
Three soft keys, designated F1, EXIT and F2, are situated immediately below the display
as shown below. These keys have their function allocated by the instrument software
which is indicated in the bottom of the display (Voltage for F1 and Units for F2 in this
example). They are used to select menu (program) options and are fully described under
the appropriate section headings.
CURSOR KEYS (Fig. 1)
The cursor keys consist of a block of four keys, designated up , down , left , and
right . In programs where options need to be selected from a list, (e.g.) the TASK
selection program, the up and down cursor keys are used to highlight one of the
options, from which it can be selected by the ENTER key. In TASK mode, where more
than one page of options are provided, the left , and right cursor keys will switch
between pages.
1 Test port, connect to unit under test 2 Hard keys
3 Cover (external interfaces) 4 Electrical inputs
5Cursor keys 6Function (soft) keys
7 Release valve (releases pressure through 8) 8 Vent port
9 Select positive or negative pressure 10 Pump
11 Fine pressure adjuster

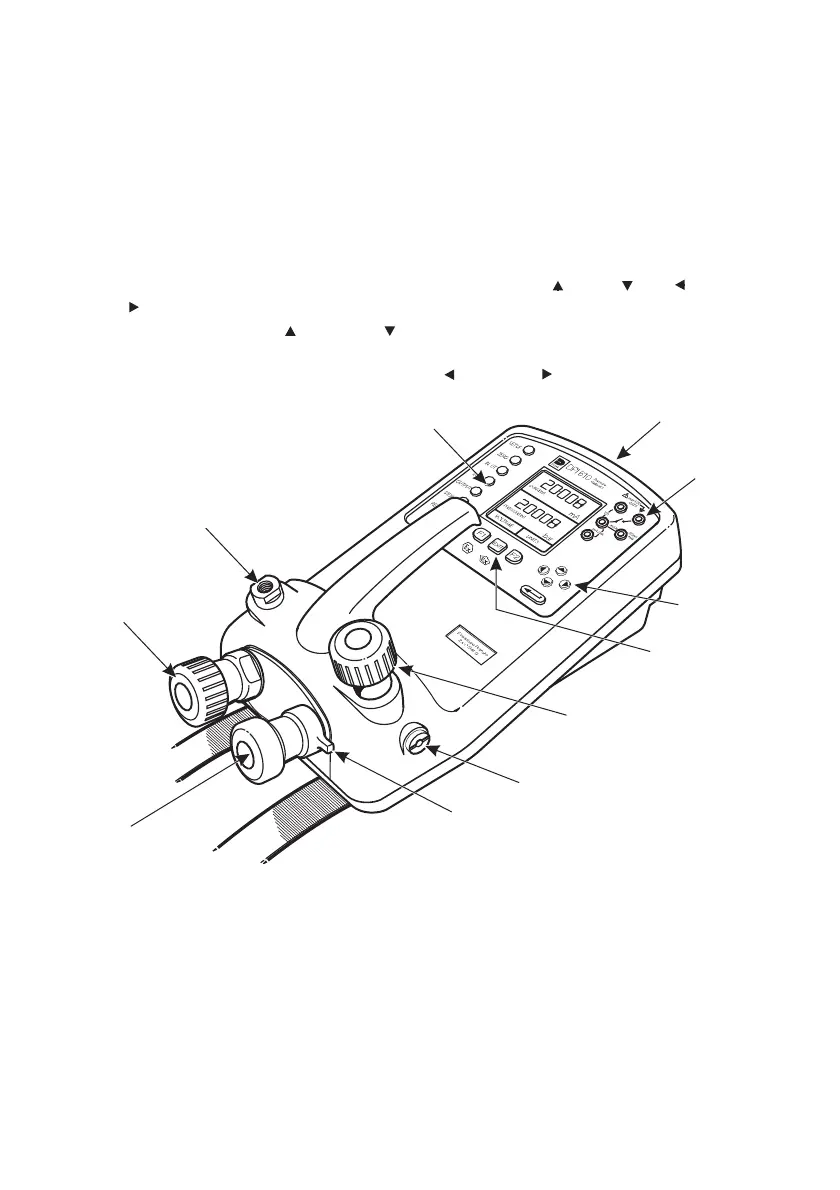

Figure 2 - DPI 610/615 IS Calibrator Controls
