IRECTION 5273008-100, REVISION 9 LOGIQ C SERIES BASIC SERVICE MANUAL
Chapter 8 Replacement Procedures 8-5
Section 8-3 Loading Base Image Software (cont’d)
8.) System CD will be loaded as shown in the screen below.
9.) System updating finished, refer to Figure 8-6 on page 8-5 .
10.)Press power key to reboot system, then remove the CDROM from the drive immediately.
When system first time boot up after upgrading complete, type Serial Number and Option Key
before starting up.

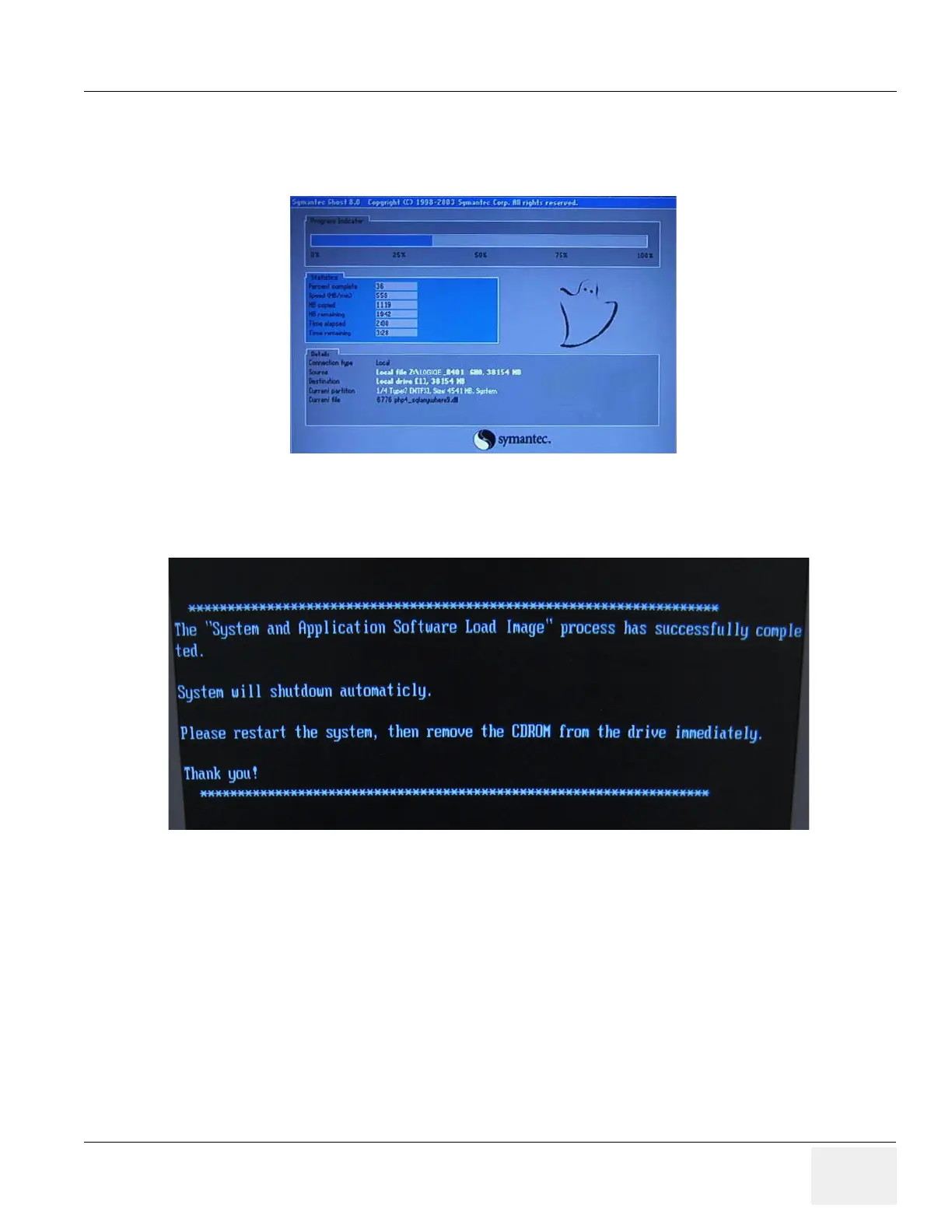

Figure 8-5 Upgrading message
Figure 8-6 System upgrade complete
