IRECTION 5273008-100, REVISION 9 LOGIQ C BASIC SERIES SERVICE MANUAL
Chapter 3 System Setup 3 - 17
3-6-5-5 Connect Peripherals (cont’d)
F.) Connect the USB HDD to the system. The USB Harddisk can be properly connected using USB
ports.
G.) Connect HP 470b Officejet printer to the system. HP 470b Officejet Printer can be properly
connected using USB Ports

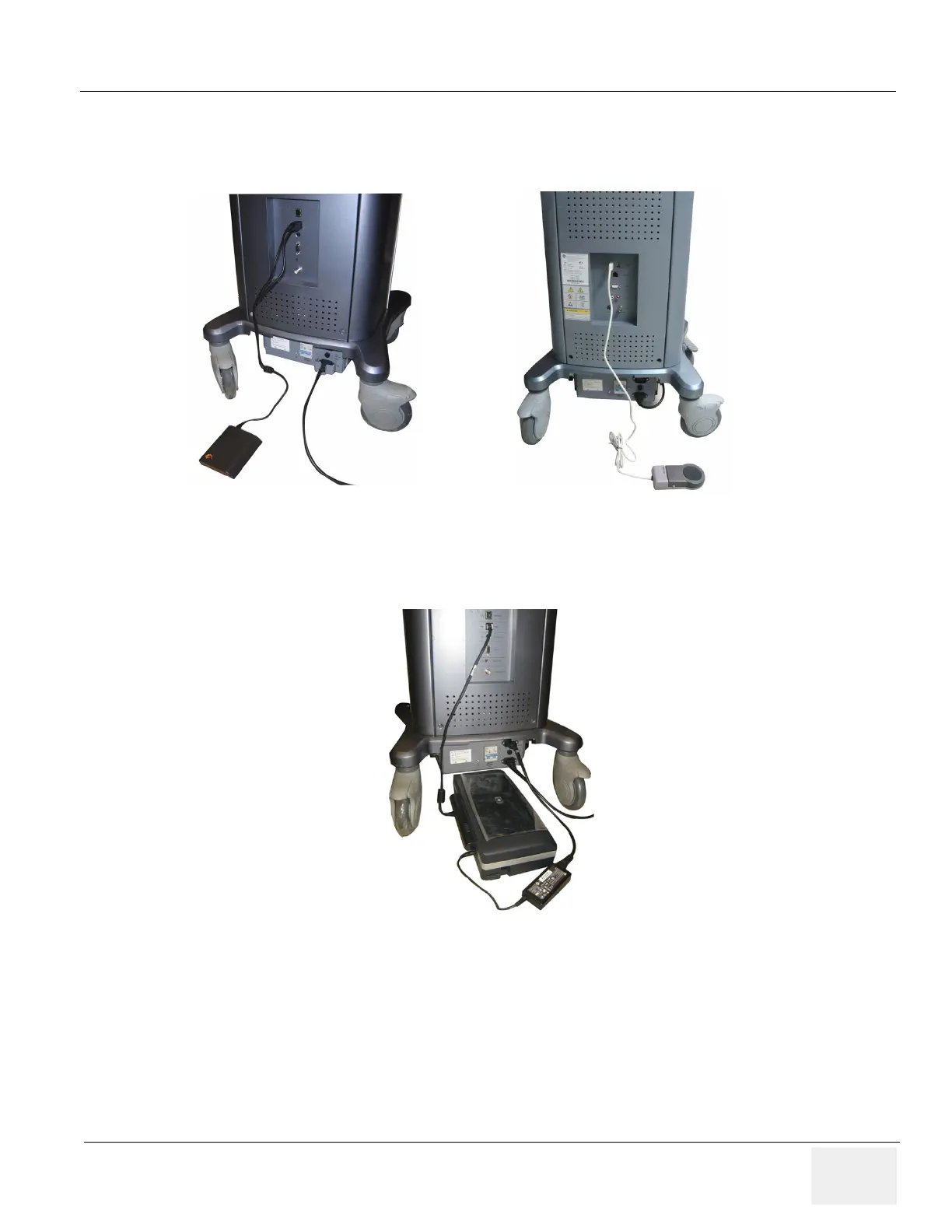

Figure 3-14 USB Hard Disk Connection
Figure 3-15 HP 470b Officejet printer Connection
