DIRECTION 5162630, REVISION 3 LOGIQ™ S6 SERVICE MANUAL
5-20 Section 5-3 - Block Diagrams and Theory
5-3-10 Interconnect Cabling

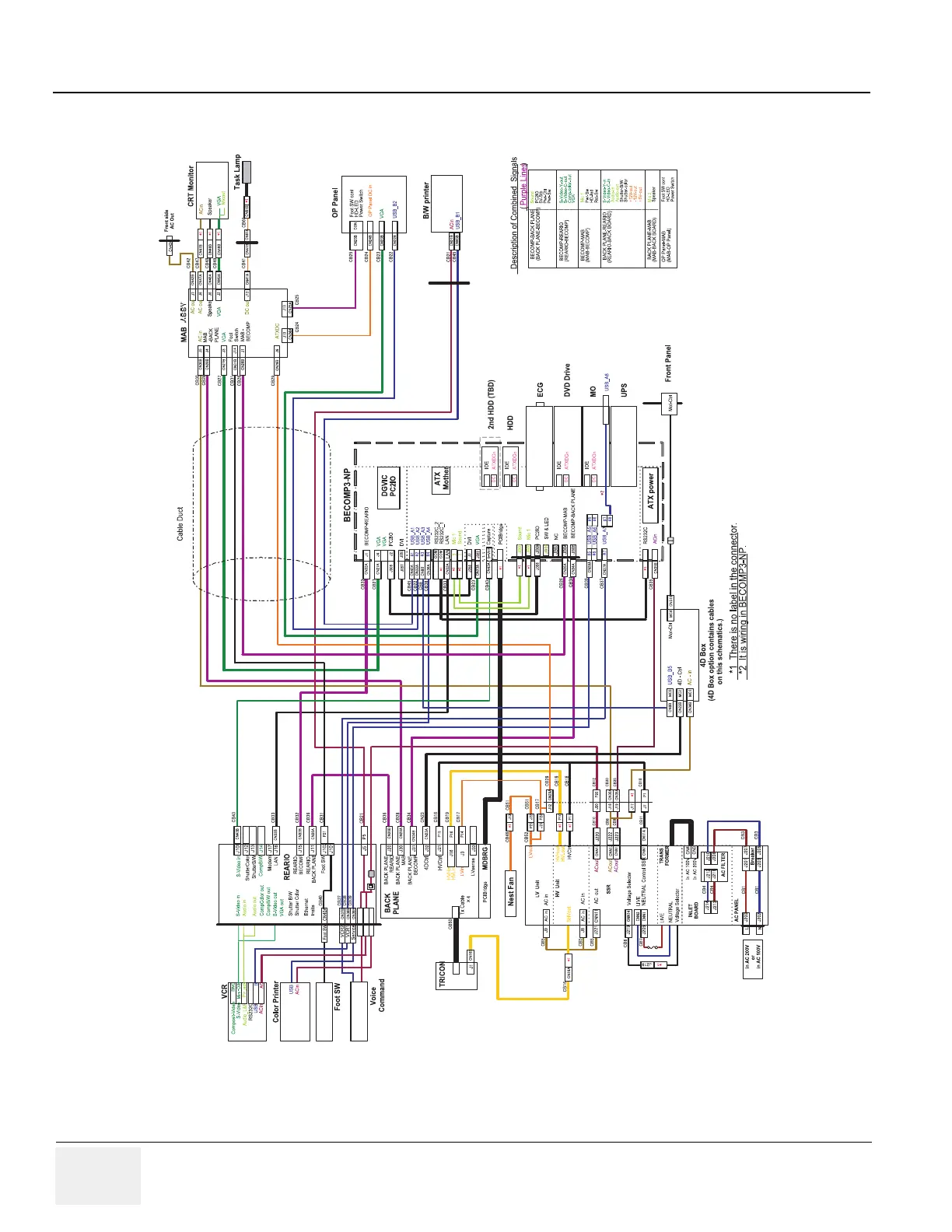

Figure 5-47 Internal Cable Connection CRT type for
backward production before BT08 (For original HW
config systems, including initial release, and upgraded
BT08 systems)

 
