GE HEALTHCARE
DIRECTION 5162630, REVISION 3 LOGIQ™ S6 SERVICE MANUAL
Section 5-5 - Common Service Platform 5-35
5-5-7 Image Quality
The Image Quality page contains tools for troubleshooting image quality issues.
5-5-8 Calibration
The Calibration page is used to calibrate the system.
5-5-9 Configuration
The Configuration page is used to setup various configuration files on the system.
The Service Platform is used as the access and authorization control for remote access to the
configuration subsystem.

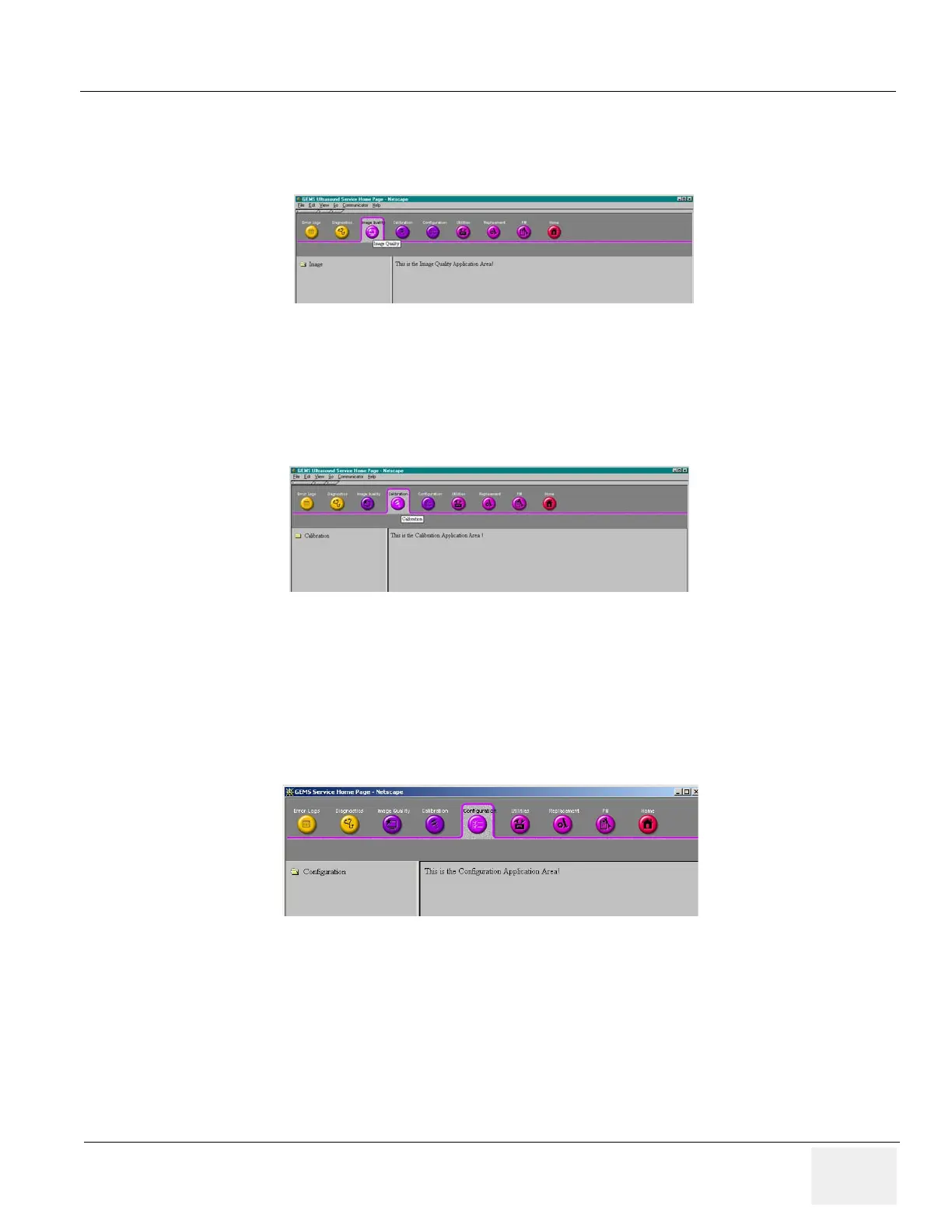

Figure 5-62 Image Quality Page
Figure 5-63 Calibration Page
Figure 5-64 Configuration Page
