GE HEALTHCARE
DIRECTION 5162630, REVISION 3 LOGIQ™ S6 SERVICE MANUAL
5-34 Section 5-5 - Common Service Platform
5-5-6 Diagnostics
The Diagnostic page includes various diagnostic tests for troubleshooting.
5-5-6-1 Diagnostic Reports
Diagnostic tests return a report to the Service Platform. The platform retains the report and allows for
future viewing of the diagnostic logs.
5-5-6-2 Proactive Diagnostics
A system of self-monitoring is largely supported with the integration of iLinq. The scheduler, executive,
user interfaces, and some of the proactive diagnostic functions are provided by iLinq. Other tasks will
need to be provided by the product team.

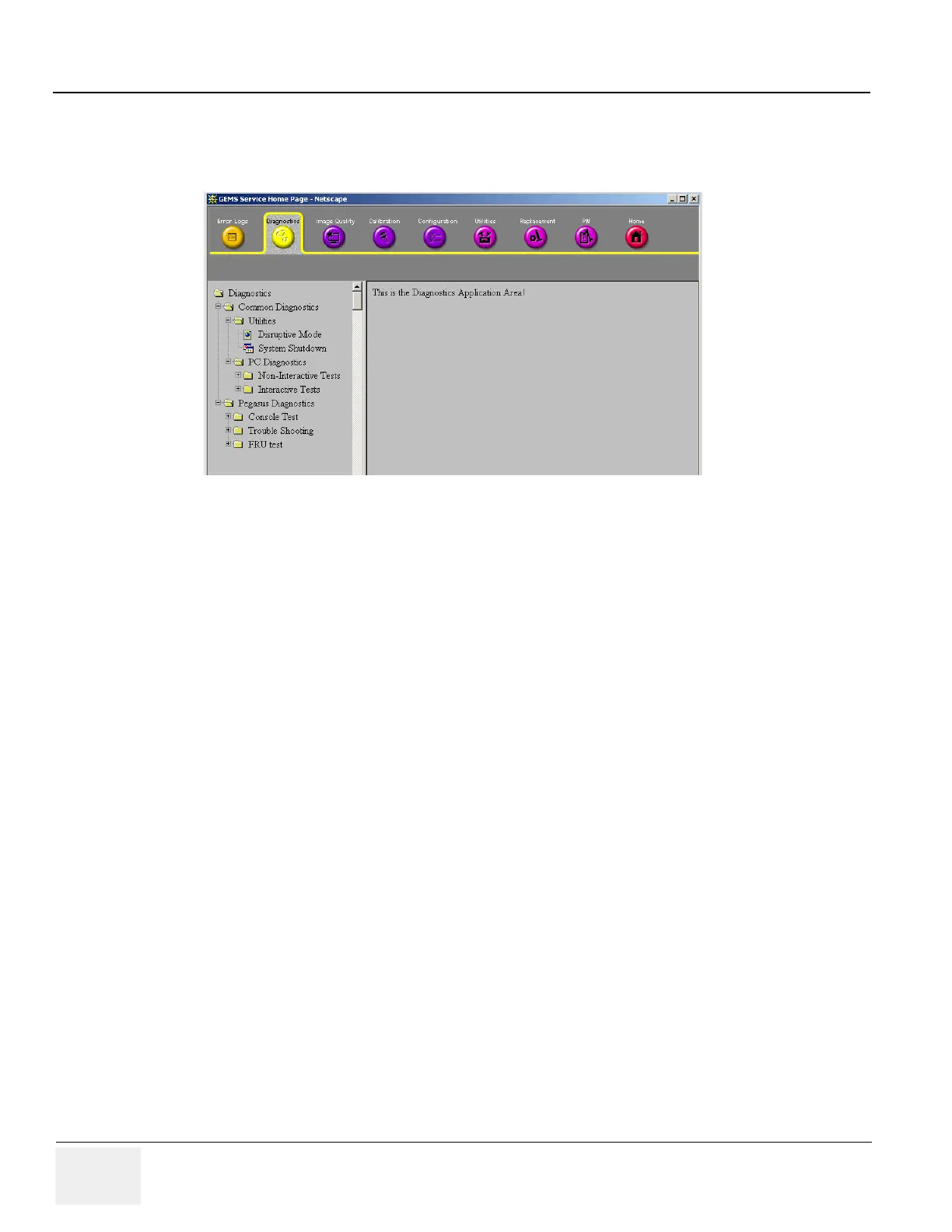

Figure 5-61 Diagnostic Page
