Section 6-2 - Caster Brake/Swivel Function Adjustments 6-3
6-2-1-1 Preparation
1.) Remove the followings to access the brake/swivel lock adjusters.
- Crescent cover (two rubber caps and screws)
- Crescent Cover Bracket (two screws)
- Front lower cover (four screws)
- Pedal covers (screws)

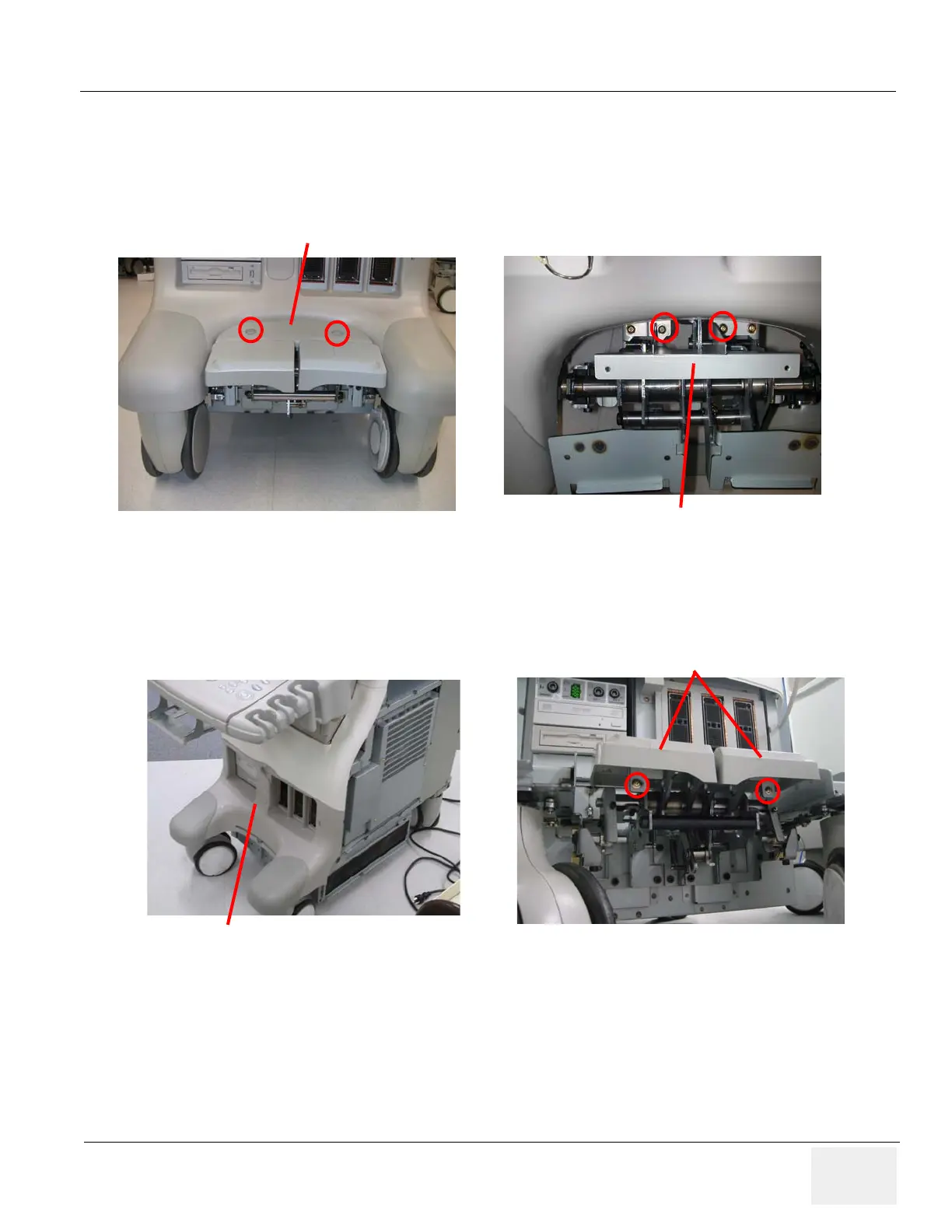

Figure 6-74 Crescent Cover and Crescent Cover Brasket
Figure 6-75 Front Lower Cover and Pedal Covers
Crescent cover
Crescent bracket
Pedal Covers
Front lower cover
