GE HEALTHCARE
DIRECTION 5162630, REVISION 3 LOGIQ™ S6 SERVICE MANUAL
8-44 Section 8-3 - Software Loading Procedures (R7.7.x or later with BEP4)
8-3-10-3-3 For new LCD Monitor: GA500C
To adjust the brightness:
1.) Press the Toggle button (2) or (3) Once for brightness adjustment.
a.) Verify that Brightness is 80 (Dark Room) or 100 (Bright Room).
If it is not, increase brightness to press the adjustment button (3).
If it is not, decrease brightness to press the adjustment button (2).
b.) Press the button (1) Once. The brightness display disappears.
NOTE: Only brightness adjustment is necessary on new LCD: GA500C.
8-3-10-4 Software Option Check
1.) Touch Utility > Admin.
2.) Click on System Admin tab and verify that HW Number is the same as the Option Dongle ID.
3.) Also, verify that the all software options, checked prior to the installation, are listed with the same
status as before.
4.) Enter "BT07 Option" Key code to enable BT08 features. (Refer to Section 1-1-1 - Parts Required
for details)
NOTICE
To determine the LCD type, refer to 8-3-10-3-1.

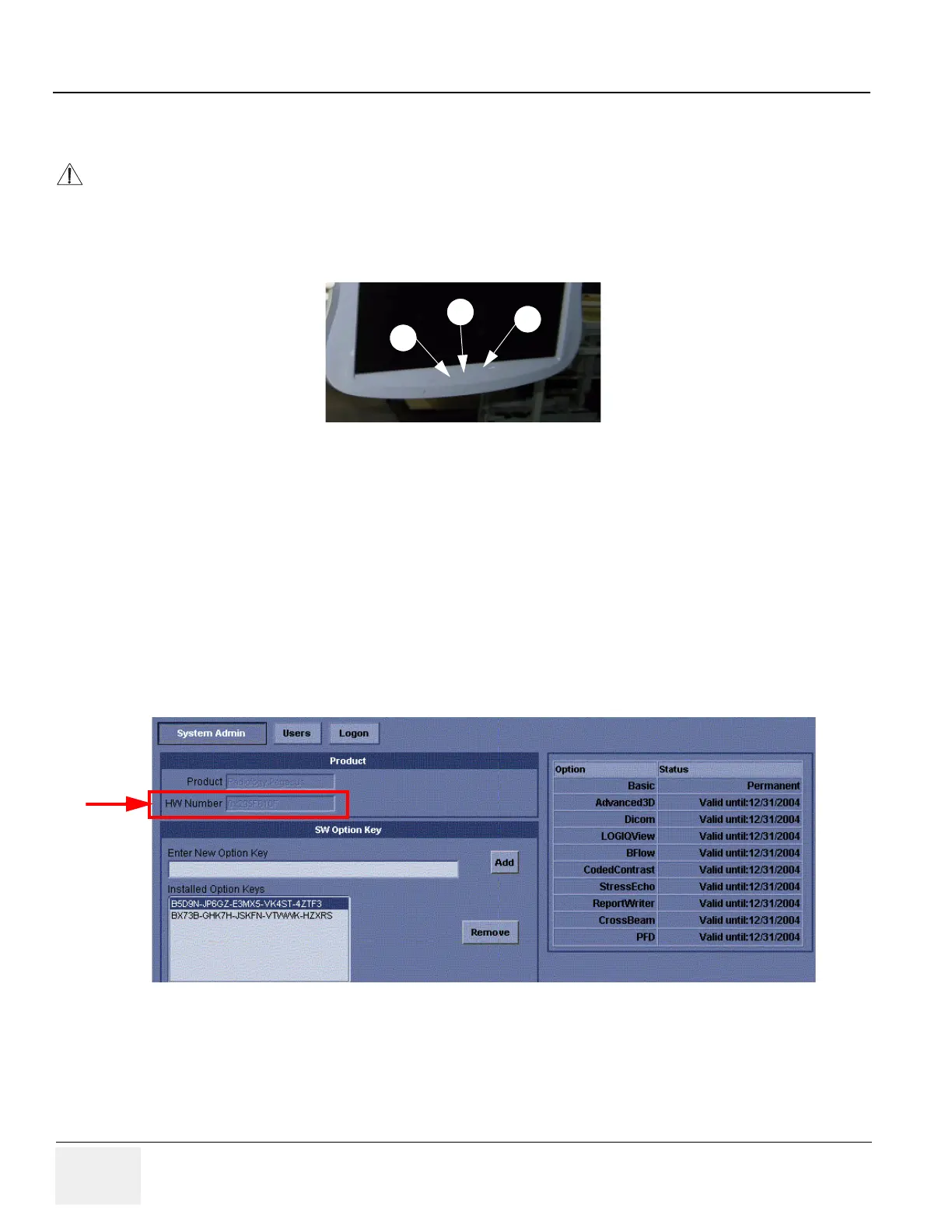

Figure 8-163 LCD Monitor Adjustment buttons
Figure 8-164 System Admin
1
2
3
