DIRECTION 5162630, REVISION 3 LOGIQ™ S6 SERVICE MANUAL
Section 9-5 - Renewal Parts List for Original LOGIQ S6 (BT06) 9-25
9-5-9 Power Supply

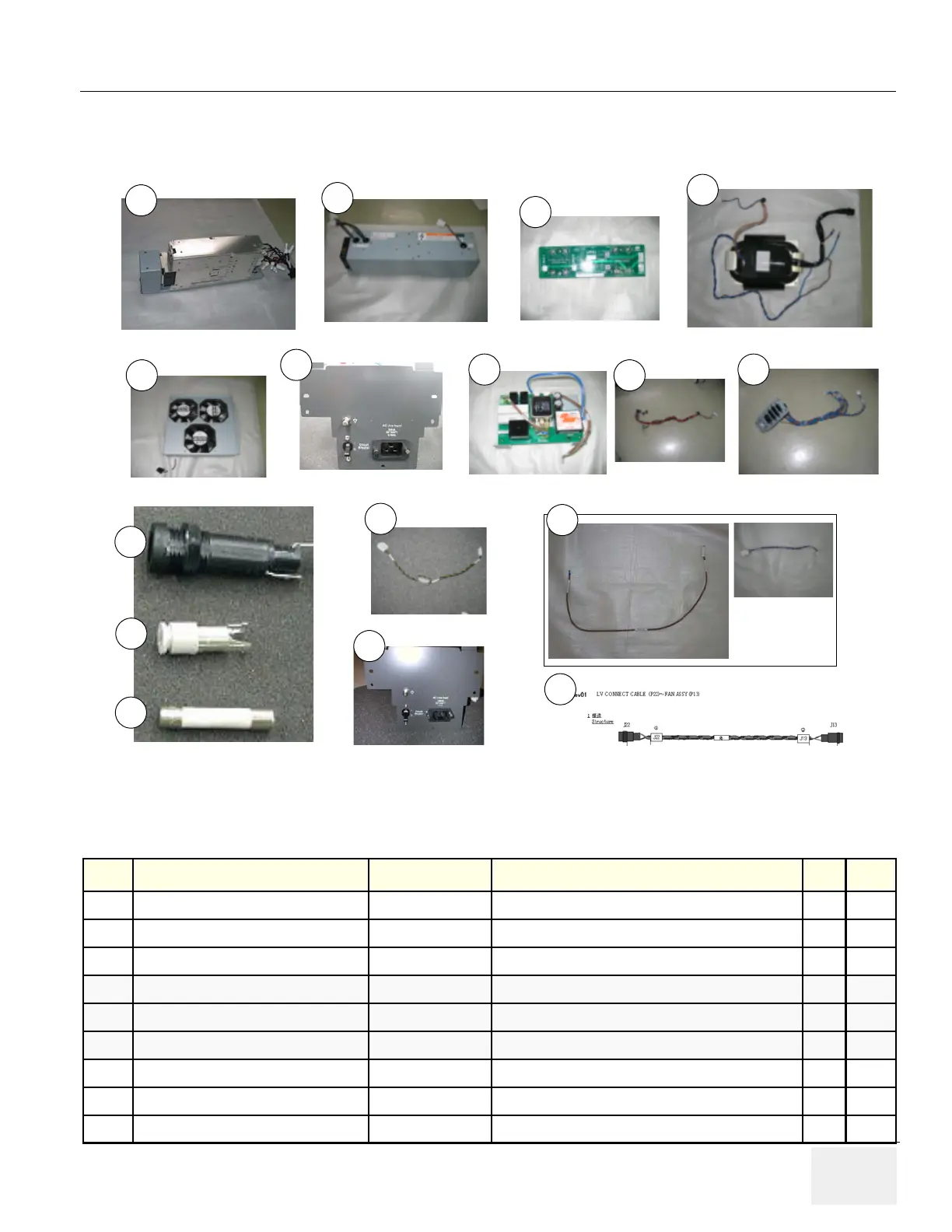

Figure 9-200 Power Supply
Table 9-82 Power Supply
Item Part Name Part Number Description Qty FRU
170 LV UNIT 5168931 LV with cables 1 1
171 HV UNIT 5168761-2 with sheet metal 1 1
173 SSR BOARD 5118606 1 1
174 TRANS 2373331-2 1 1
175 FAN Assy 5168756 1 1
176 AC INLET Assy 100V, 120V 5169662 1 1
177 AC NOISE FILTER, 100V, 12V 5168999 Board + Filter + Plate + Cable 1 1
178 LHV - BP CABLE Assy CSL L6 5168928 Cable Assy + Plate 1 1
179 AC PANEL CABLE Assy CSL L6 5168815 Cable + Plate 1 1
