GE LOGIQ V5/LOGIQ V3
D
IRECTION 5496012-100, REVISION 3BASIC SERVICE MANUAL
5 - 2 Chapter 5 - Components and Functions (Theory)
Section 5-2
Block Diagram
5-2-1 System Diagram

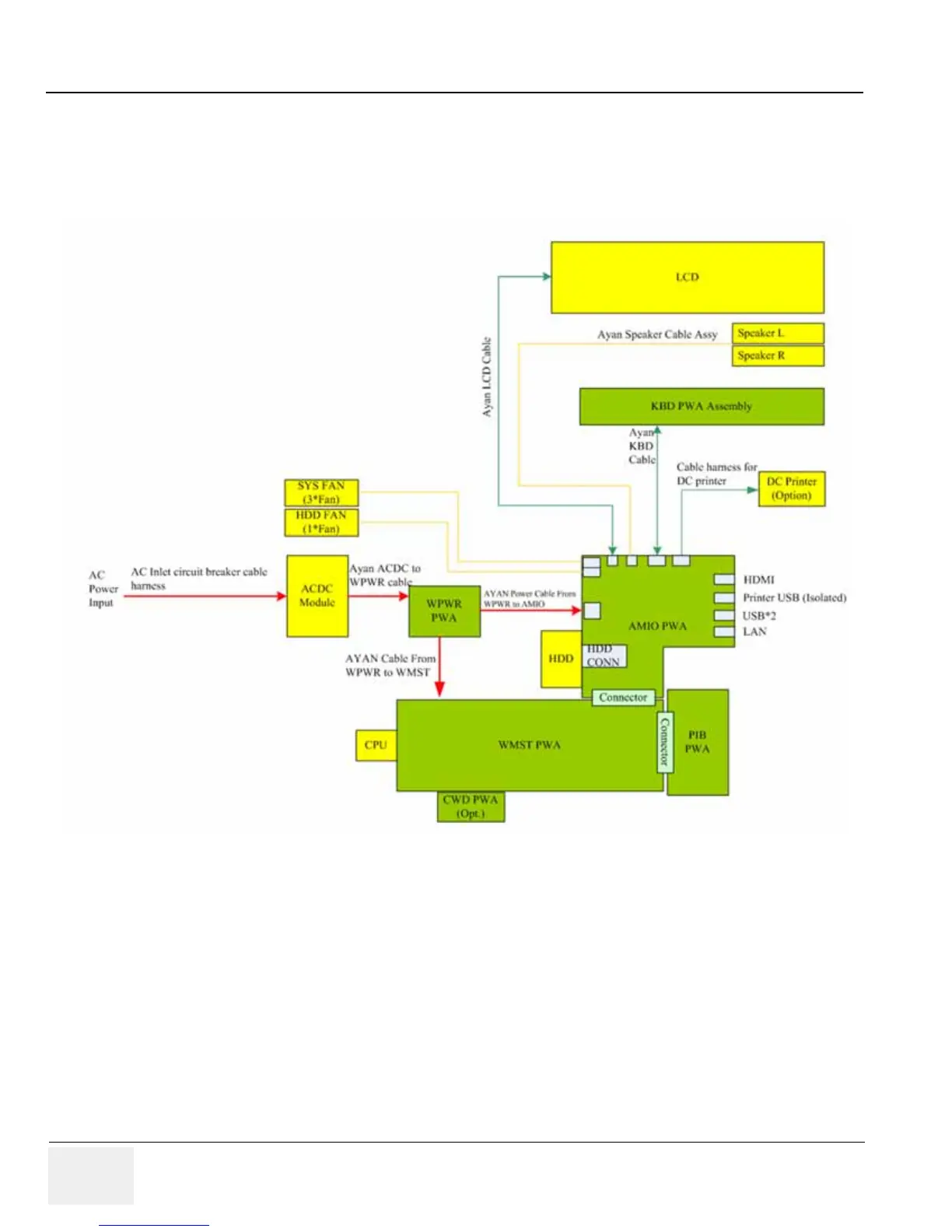

Figure 5-1 LOGIQ V5/LOGIQ V3 System Diagram
