GE LOGIQ V5/LOGIQ V3
D
IRECTION 5496012-100, REVISION 3 BASIC SERVICE MANUAL
Section 7-2 - Gathering Trouble Data 7 - 5
7-3-3 Capturing a Screen
The following is a generic process to capture any screen from the scanner:
1.) Navigate to and display the image/screen to be captured.
2.) Press Store. This will place a snapshot of the screen on the “clipboard” displayed at the bottom
of the scan image display.
3.) Press Freeze to unfreeze the image to view the image screen and the snapshots displayed on
the bottom.
4.) Highlight the snapshot to be stored.
5.) Select the save as icon on the right side of the image screen.

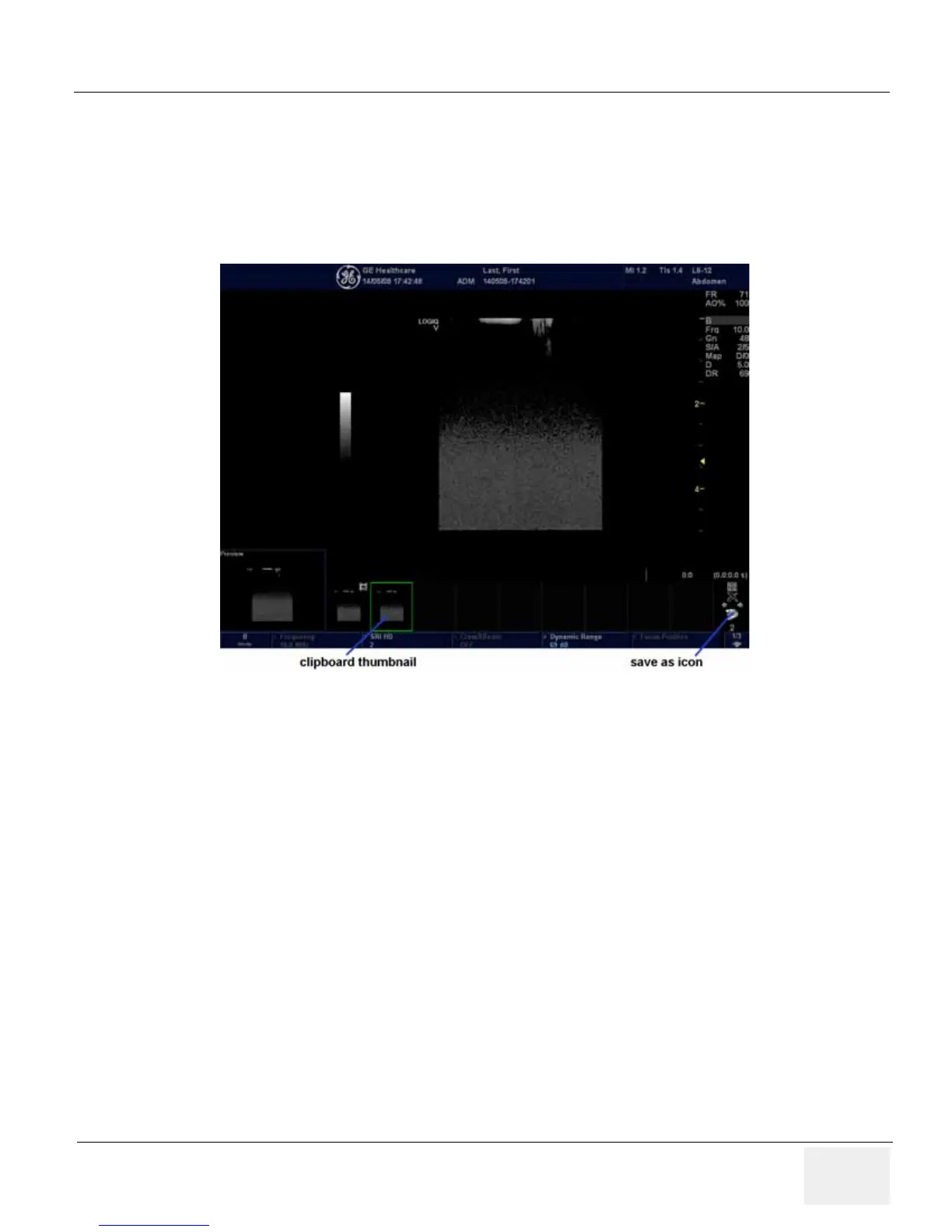

Figure 7-3 Select Image to Capture
