8-2-3 Footrest
8-2-3-1 Tools
• Common phillips screwdrivers
8-2-3-2 Preparations
• Shut Down the System and disconnect the power cord.
8-2-3-3 Removal procedure
1.) Unscrew 4 screws at the bottom side, and remove the footrest, refer to Figure 8-9 on page 8-3.
8-2-3-4 Mounting procedure
Install the new parts in the reverse order of removal.

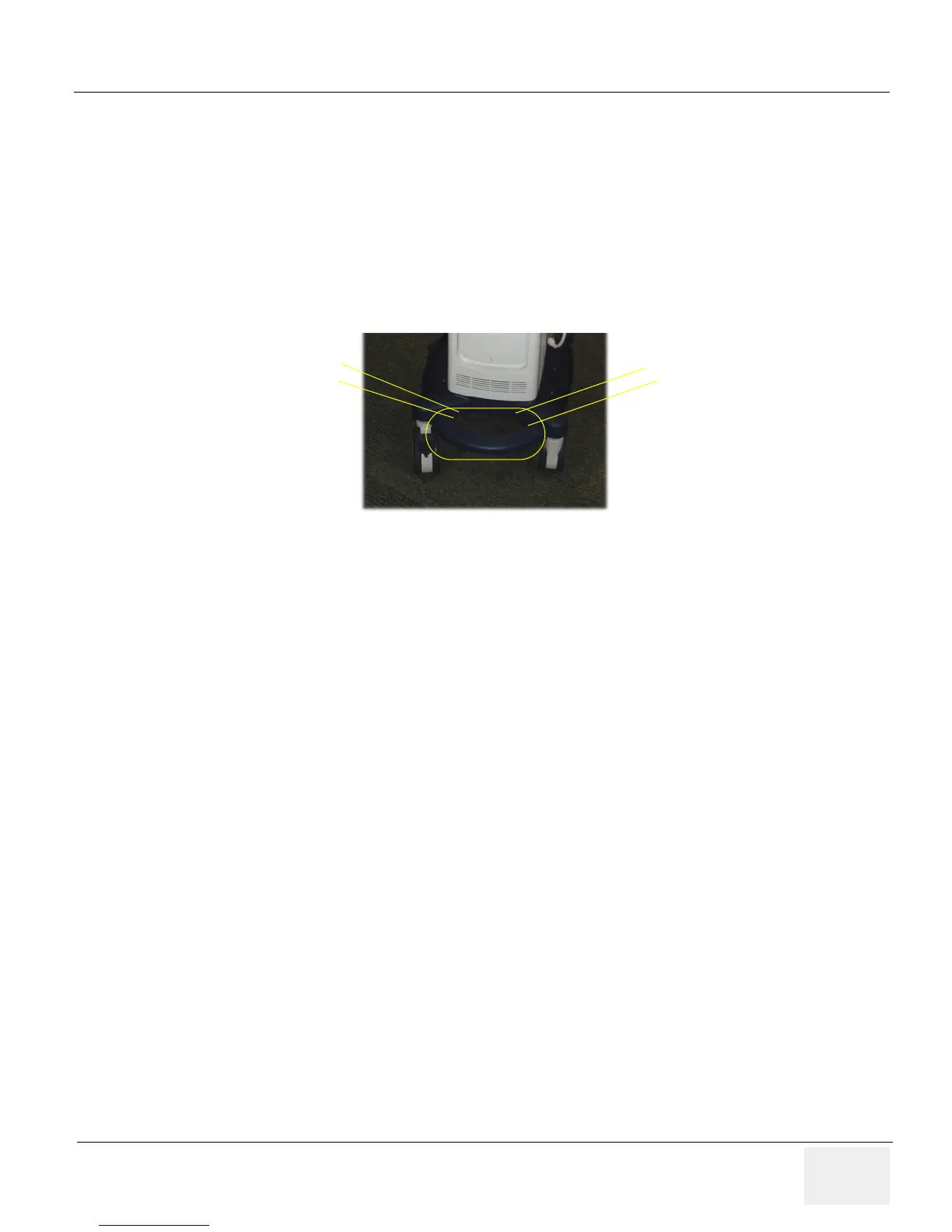

Figure 8-9 Footrest Cover Disassembly
1
2
3
4
