Chapter 4 - Functional Checks 4 - 7
4-3-5 System Features
4-3-5-1 Control Panel

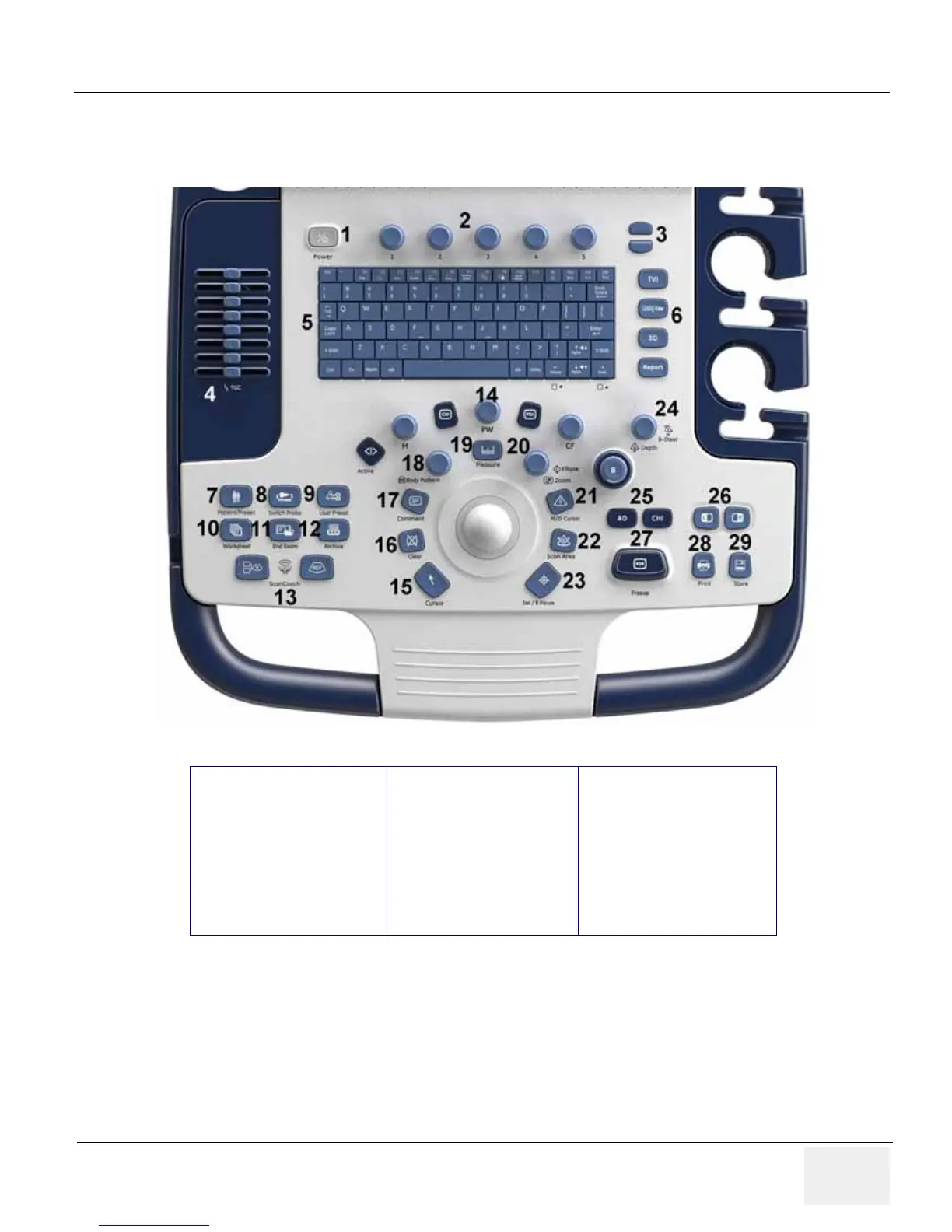

Figure 4-5 Control Panel Tour
1. Power On/Off
2. Rotary Button
3. Page Up/Down keys
4. TGC
5. AN Keyboard
6. User Defined Keys
7. Patient/Preset key
8. Probe key
9. User Preset key
10. Worksheet key
11. End Exam key
12. Archive key
13. Scan Coach
14. Mode/Gain
15. Cursor key
16. Clear key
17. Comment key
18. Body Pattern
19. Measure key
20. Ellipse/ Zoom key
21. M/D Cursor key
22. Scan Area key
23. Set /B Pause key
24. B Steer/ Depth key
25. AO and CHI key
26. Left/Right key
27. Freeze key
28. Print key
29. Store key
