GE LOGIQ V5/LOGIQ V3
D
IRECTION 5496012-100, REVISION 3BASIC SERVICE MANUAL
2 - 10 Section 2-2 - General Console Requirements
2-3-5 Suggested floor plan, Ultrasound system, and EchoPAC PC in same room

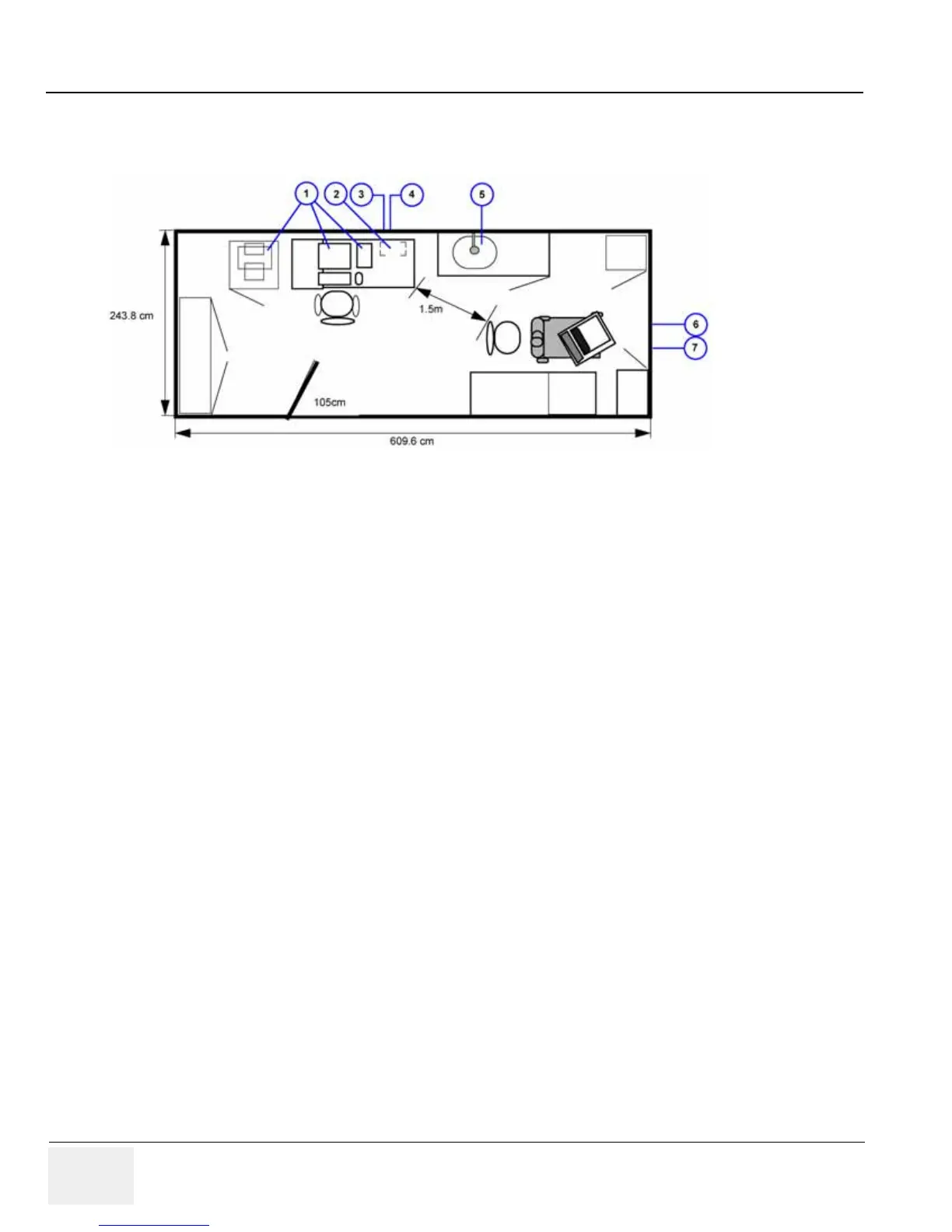

Figure 2-2. Suggested Room with EchoPAC PC workstation and Ultrasound Scanner
1. EchoPAC PC workstation parts
2. UPS
3. Ethernet network wall outlet
4. 3x mains power outlets
5. Hot and Cold water
6. Dedicated mains power outlet
7. Ethernet network wall outlet
