GE LOGIQ V5/LOGIQ V3
D
IRECTION 5496012-100, REVISION 3 BASIC SERVICE MANUAL
4 - 14 Section 4-3 - General Procedure
4-3-7 M Mode Controls
4-3-7-1 Preparations
1.) Connect one of the probes listed in 3-6-6 "Available Probes" on page 3-24, in Chapter 3 Installation
to the System probe connector.
2.) Turn ON the scanner (if it isn’t turned on already).

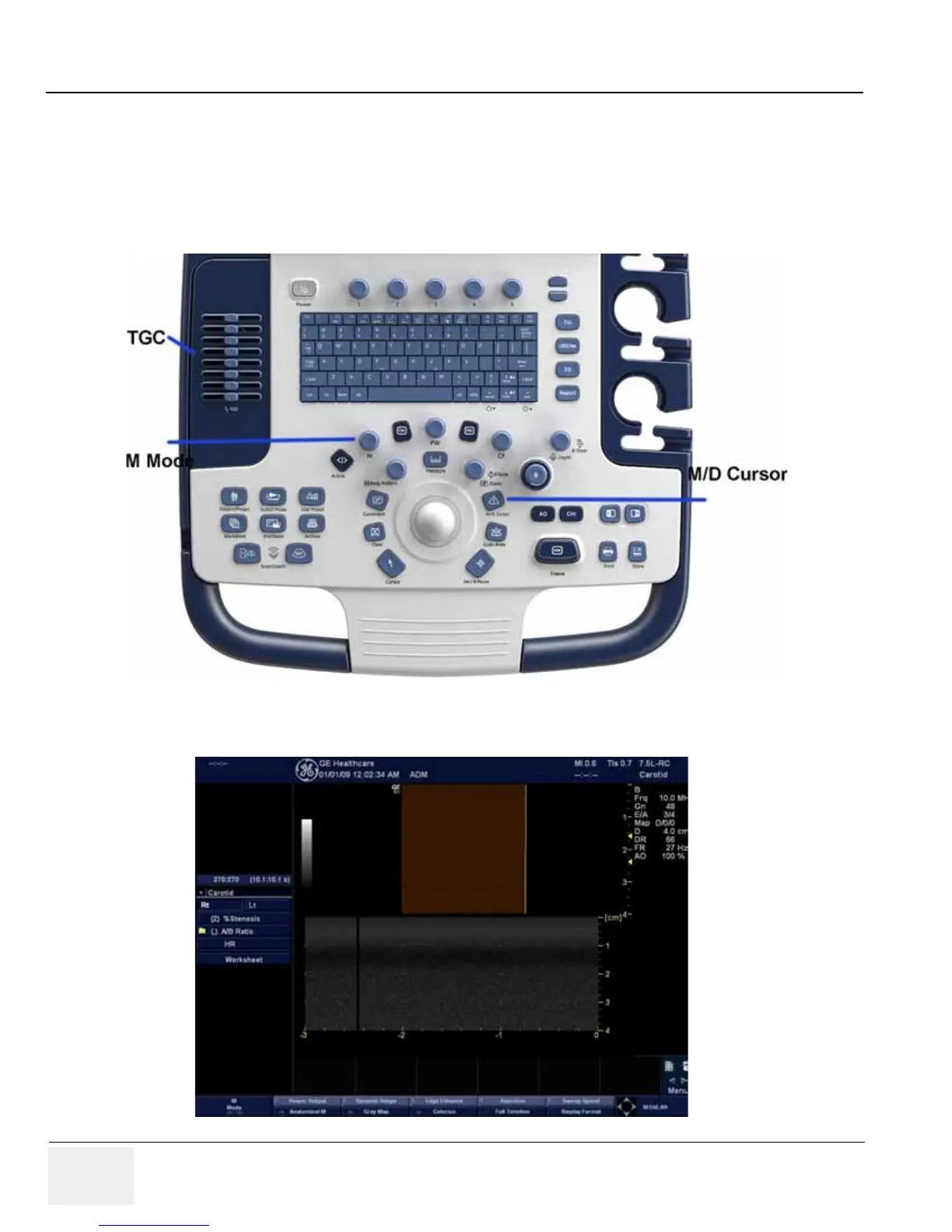

Figure 4-10 Controls available in M Mode
Figure 4-11 M Mode Screen Picture Example
To Next Page
