Marquette Hellige GmbH MAC 1100/1200 V 1.1 Page 58
227 492 20 D - 0002

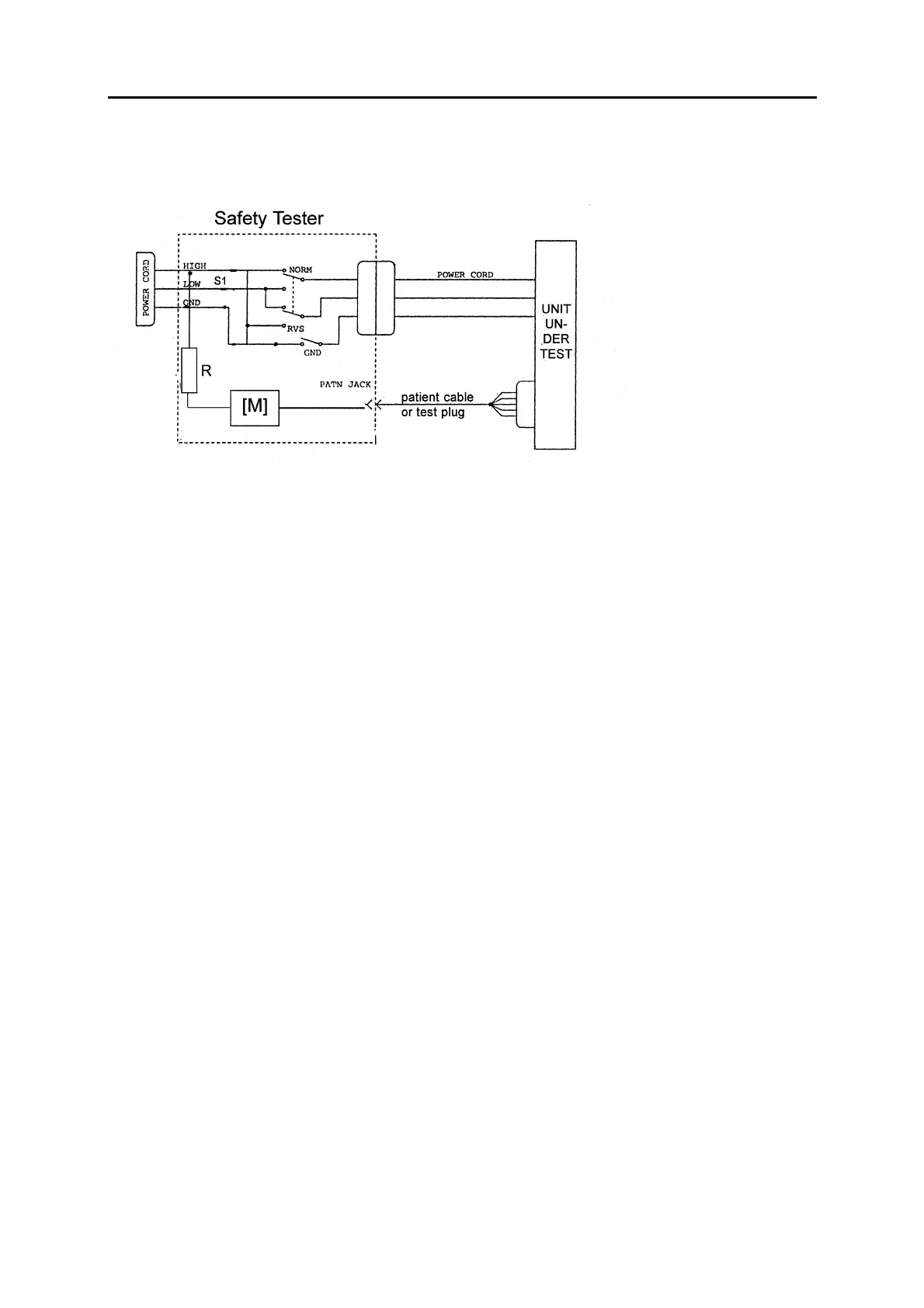

Electrical Diagram for Patient Leakage Current Test
For the protection of the test person, the following values of resistor R may be used:
Type BF 22 kOhm (120 to 130 V)
47 kOhm (220 to 240 V)
Type CF 100 kOhm (220 to 240 V)
7.2 Maintenance, cleaning, disinfection
MAC 1200 maintenance, cleaning, disinfection is performed in accordance with the
MAC 1200 “Operator’s Manual”, Section 11, "Cleaning, disinfection and maintenance",
as applicable.
Applications requiring extensive recordings may result in deposits on the thermal array
printhead which normally do not, however, have any adverse effect on the printing
quality. This can be removed with a soft, fluff-free cloth soaked in an alcohol-based
cleaning agent (e.g., surgical spirit).
